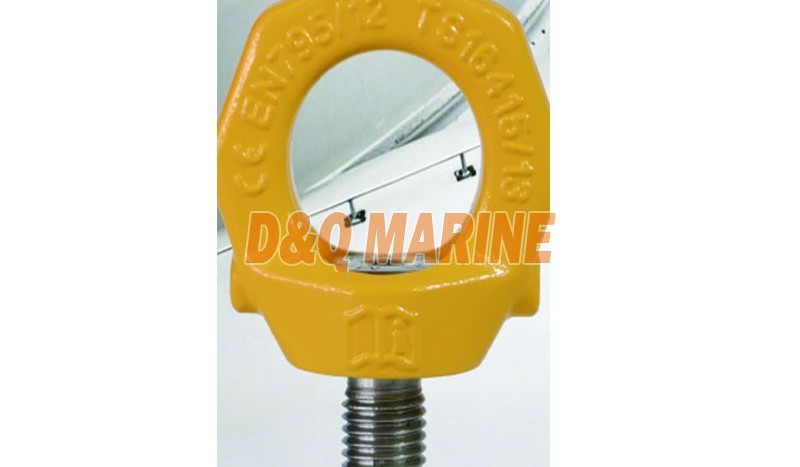

PSA Fall Protection Anchorage Point - Image 1

PSA Fall Protection Anchorage Point

Category: Blots and nuts

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote

We can supply according to your requirement.

PSA Fall Protection Anchorage Point

China PSA Fall Protection Anchorage Point:

PSA Fall Protection Anchorage Point

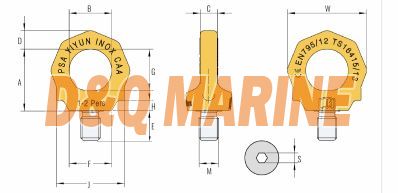

Metric Thread:

ITEM NO.		M	Pers	Dimensional Parameters/mm											Locking Torque /Nm		Kg
ITEM NO.		M	Pers	A	B	C	D	E	F	G	H	J	S	W	Locking Torque /Nm		Kg
PSA INOX-M12		M12x1.75	1Pers	42	30	10	13	18	33	29	7	48	8	55	10		0.2
PSA INOX-M16		M16x2.0	l-2Pers	51	35	14	15	24	35	34	8	56	8	65	30		0.35
PSA INOX-M20		M20x2.5	1-2Pers	57.5	40	17	19	30	43	37	9.5	68	12	78	70		0.6
PSA INOX-M12 L-50		M12x1.75	1Pers	42	30	10	13	50	33	29	7	48	8	55	10		0.22
PSA INOX-M16 L-50		M16x2.0	1-2Pers	51	35	14	15	50	35	34	8	56	8	65	30		0.48
PSA INOX-M16 L-120		M16x2.0	1-2Pers	51	35	14	15	120	35	34	8	56	8	65	30		0.56
PSA INOX-M20 L-60		M20x2.5	1-2Pers	57.5	40	17	19	60	43	37	9.5	68	12	78	70		0.63

UNC Thread:

ITEM NO.	M		Pers	Dimensional Parameters/mm											Locking Torque /Nm		Kg
ITEM NO.	M		Pers	A	B	C	D	E	F	G	H	J	S	W	Locking Torque /Nm		Kg
PSA INOX-1/2	1/2-13UNC-2A		1Pers	42	30	10	13	18	33	29	7	48	8	55	10		0.2
PSA INOX-5/8	5/8-11UNC-2A		1-2Pers	51	35	14	15	24	35	34	8	56	8	65	30		0.4
PSA INOX-3/4	3/4-10UNC-2A		1-2Pers	57.5	40	17	19	30	43	37	10	68	12	78	70		0.6
