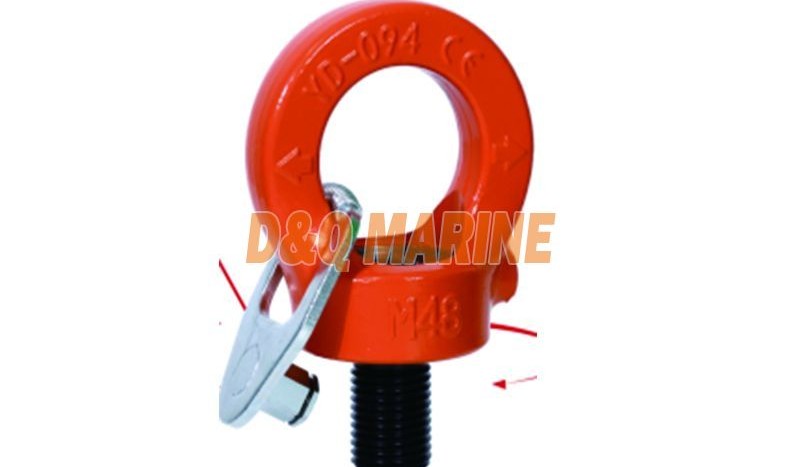

Key Eye Point
China Key Eye Point:
Key Eye Point
UNC Thread:

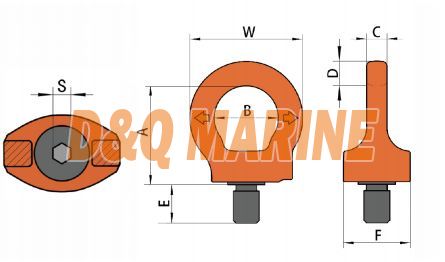

| ITEM NO. | WLL/T | M | TPI | Dimensional Parameters/mm | Locking Torque/Nm | Kg | ||||||||
| E | A | B | C | D | F | W | S | |||||||
| BLT094-5/16 | 0.3 | 5/16 | 18 | 12 | 40 | 25 | 8 | 9.5 | 26 | 44 | 6 | 10-40 | 0.15 | |
| BLT094-3/8 | 0.4 | 3/8 | 16 | 15 | 40 | 25 | 8 | 9.5 | 26 | 44 | 6 | 10-40 | 0.15 | |
| BLT094-1/2 | 0.75 | 1/2 | 13 | 18 | 47 | 30 | 10 | 11 | 32 | 52 | 8 | 15-40 | 0.2 | |
| BLT094-5/8 | 1.5 | 5/8 | 11 | 24 | 54 | 35 | 14 | 13 | 39 | 61 | 10 | 45-130 | 0.35 | |
| BLT094-3/4 | 2.3 | 3/4 | 10 | 30 | 63 | 40 | 16 | 15 | 47 | 70 | 12 | 45-130 | 0.6 | |
| BLT094-7/8 | 2.3 | 7/8 | 9 | 30 | 63 | 40 | 16 | 15 | 47 | 70 | 12 | 100-170 | 0.6 | |
| BLT094-1 | 3.2 | 1 | 8 | 36 | 73 | 48 | 19 | 18 | 55 | 84 | 14 | 190-280 | 1 | |
| BLT094-1-1/4 | 4.5 | 1-1/4 | 7 | 45 | 91.5 | 60 | 24 | 22.5 | 67 | 105 | 17 | 270-600 | 2 | |
| BLT094-1-1/2 | 7 | 1-1/2 | 6 | 54 | 114 | 72 | 29 | 27 | 85 | 126 | 22 | 270-600 | 3.8 | |
| BLT094-1-3/4 | 9 | 1-3/4 | 5 | 63 | 130 | 82 | 34 | 32.5 | 98 | 147 | 22 | 350-800 | 5 | |
| BLT094-2 | 12 | 2 | 4.5 | 72 | 151 | 96 | 38 | 36 | 114 | 168 | 27 | 350-800 | 7.5 | |
