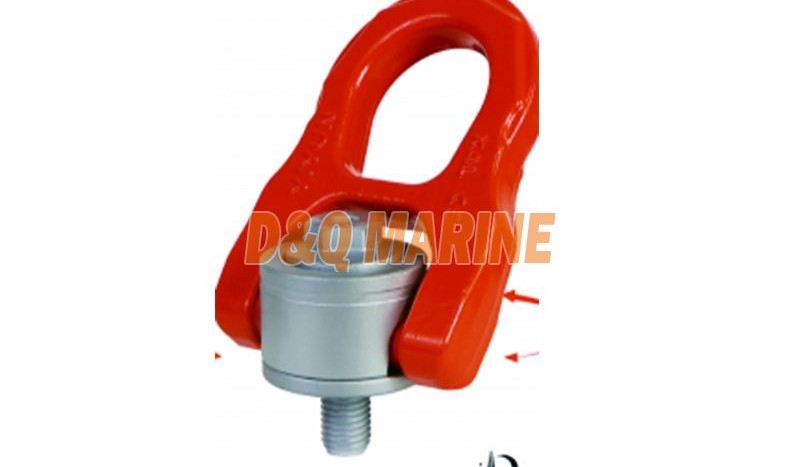

Heavy Duty Hoist Ring-S - Image 1

Heavy Duty Hoist Ring-S

Category: Blots and nuts

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote

We can supply according to your requirement.

Heavy Duty Hoist Ring-S

China Heavy Duty Hoist Ring-S:

Heavy Duty Hoist Ring-S

Metric Thread:

ITEM NO.	WLL/T	M	Dimensional Parameters/mm											Locking Torque/Nm		Kg
ITEM NO.	WLL/T	M	E	A	B	C	D	F	G	H	R	S	SW	Locking Torque/Nm		Kg
BLTO82S-M36S	9	M36x4.0	54	87	147	80	26.5	206	76.5	28	35.5	14	34	500		6
BLTO82S-M36B	12.5	M36x4.0	56	110	186	100	33	256	96.5	36	44	19	46	600		11.5
BLTO82S-M39	13.8	M39x4.0	56	110	186	100	33	256	96.5	36	44	19	46	600		11.7
BLTO82S-M42	15.6	M42x4.5	63	110	186	100	33	256	96.5	36	44	19	46	600		11.8
BLTO82S-M45	17.5	M45x4.5	63	110	186	100	33	256	96.5	36	44	19	46	600		11.9
BLTO82S-M48	20	M48x5.0	72	110	186	100	33	256	96.5	36	44	19	46	600		12.1
BLTO82S-M52	20	M52x5.0	72	123	200	110	35	279	107	36	48.5	22	55	800		15.5
BLTO82S-M56	22	M56x5.5	84	123	200	110	35	279	107	36	48.5	22	55	800		15.9
BLTO82S-M60	22	M60x5.5	84	123	200	110	35	279	107	36	48.5	22	55	800		16.2
BLTO82S-M64	22.5	M64x6.0	100	123	200	110	35	279	107	36	48.5	22	55	800		16.7
