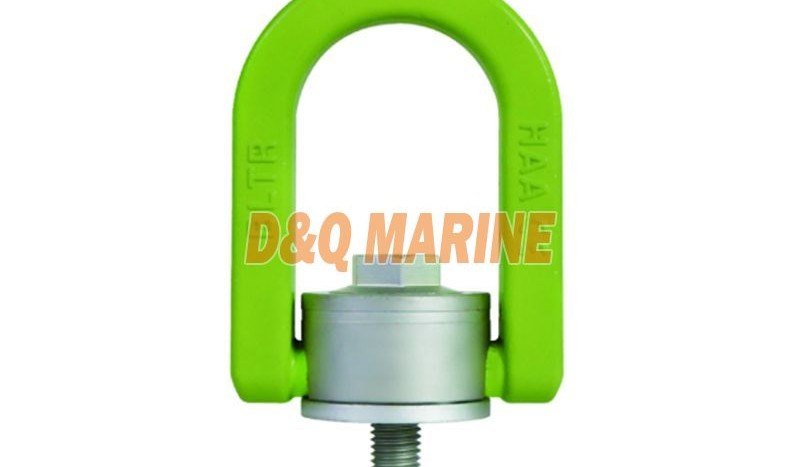

BLT118 Safe Rotating Lifting Ring - Image 1

BLT118 Safe Rotating Lifting Ring

Category: Blots and nuts

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote

We can supply according to your requirement.

BLT118 Safe Rotating Lifting Ring

China BLT118 Safe Rotating Lifting Ring:

BLT118 Safe Rotating Lifting Ring

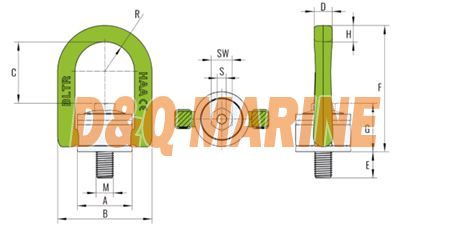

Metric Thread:

ITEM NO.	WLL/T	M	Dimensional Parameters/mm											Locking Torque/Nm		Kg
ITEM NO.	WLL/T	M	E	A	B	C	D	F	G	H	R	S	SW	Locking Torque/Nm		Kg
BLT118-M6	0.2	M6x1.0	12	33	55	40	11.5	80	30	9.5	17.5	6	13	10		0.3
BLT118-M8	0.5	M8x1.25	12	33	55	40	11.5	80	30	9.5	17.5	6	13	10		0.3
BLT118-M10	0.7	M10x1.5	15	33	55	40	11.5	80	30	9.5	17.5	6	13	10		0.3
BLT118-M12	1	M12x1.75	20	33	55	40	11.5	80	30	9.5	17.5	6	13	15		0.3
BLT118-M14	1.5	M14x2.0	21	50	86	56	16.5	115.5	44.5	15	27	8	19	30		0.7
BLT118-M16	2	M16x2.0	24	50	86	56	16.5	115.5	44.5	15	27	8	19	50		1
BLT118-M18	2.5	M18x2.5	26	65	113	82	25	161	58	21	34.5	10	27	70		1.8
BLT118-M20	3	M20x2.5	30	65	113	82	25	161	58	21	34.5	10	27	100		2
BLT118-M22	4	M22x2.5	33	65	113	82	25	161	58	21	34.5	10	27	100		2.3
BLT118-M24	5	M24x3.0	36	65	113	82	25	161	58	21	34.5	10	27	160		2.6
BLT118-M27	5.6	M27x3.0	38	87	145	98	30	204	76.5	29	45.5	14	34	200		4.2
BLT118-M30	7.8	M30x3.5	48	87	145	98	30	204	76.5	29	45.5	14	34	500		4.5
BLT118M33	8.3	M33x3.5	48	87	145	98	30	204	76.5	29	45.5	14	34	500		5.2
BLT118-M36S	9	M36x4.0	54	87	145	98	30	204	76.5	29	45.5	14	34	500		5.7
BLT118-M36B	12.5	M36x4.0	56	110	184	118	38	251	96.5	36	57	19	46	600		11
BLT118-M39	13.8	M39x4.0	56	110	184	118	38	251	96.5	36	57	19	46	600		10.5
BLT118-M42	15.6	M42x4.5	63	110	184	118	38	251	96.5	36	57	19	46	600		11.2
