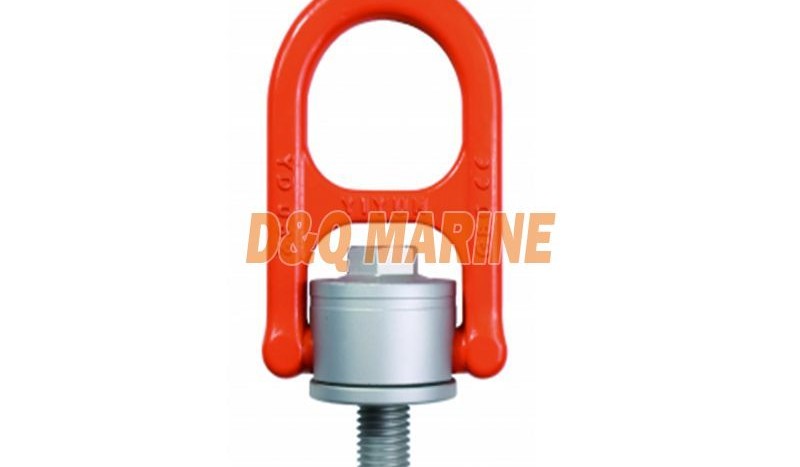

BLT082 Heavy Duty Hoist Ring - Image 1

BLT082 Heavy Duty Hoist Ring

Category: Blots and nuts

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote

We can supply according to your requirement.

BLT082 Heavy Duty Hoist Ring

China BLT082 Heavy Duty Hoist Ring:

BLT082 Heavy Duty Hoist Ring

Metric Thread:

ITEM NO.	WLL/T	M	Dimensional Parameters/mm											Locking Torque /Nm		Kg
ITEM NO.	WLL/T	M	E	A	B	C	F	G	V	R	S	SW	K	Locking Torque /Nm		Kg
BLTO82-M8	0.5	M8x1.25	12	33	35	30	86	56	10	17.5	6	13	10	10		0.3
BLTO82-M10	0.7	M10x1.5	15	33	35	30	86	56	10	17.5	6	13	10	10		0.3
BLTO82-M12	1	M12x1.75	20	33	35	30	86	56	10	17.5	6	13	10	15		0.3
BLT082-M14	1.5	M14x2.0	21	50	55	44	130	85	14	27	8	19	13	30		1
BLTO82-M16	2	M16x2.0	24	50	55	44	130	85	14	27	8	19	13	50		1
BLT082-M18	2.5	M18x2.5	26	65	66	58	162.5	109	18	34.5	10	27	16	70		2
BLT082-M20	3	M20x2.5	30	65	66	58	162.5	109	18	34.5	10	27	16	100		2
BLTO82-M22	4	M22x2.5	33	65	66	58	162.5	109	18	34.5	10	27	16	100		2
BLT082-M24	5	M24x3.0	36	65	66	58	162.5	109	18	34.5	10	27	16	160		2
BLT082-M27	5.6	M27x3.0	38	87	80	76.5	218	150	27	45.5	14	34	25	200		5.5
BLTO82-M30	7.8	M30x3.5	48	87	80	76.5	218	150	27	45.5	14	34	25	500		5.6
BLTO82-M36S	9	M36x4.0	54	87	80	76.5	218	150	27	45.5	14	34	25	500		5.7
