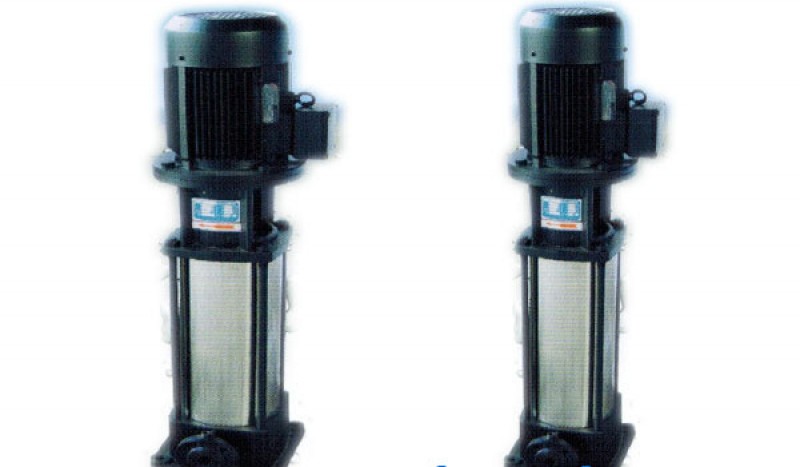

GDL Series Vertical Multistage Pipeline Pump
China GDL Series Vertical Multistage Pipeline Pump:
The pump is the latest type of pump, with energy saving, small footprint, easy installation, stable performance and other characteristics.The coat is made of 1Cr18Ni9Ti high quality stainless steel, and the shaft seal is wear-resisting mechanical seal with no leakage and long service life.A hydraulic balance to solve the axial force, so that the pump running smoothly, low noise, installation conditions better than the DL pump, can be easily installed in any section of horizontal pipeline in the middle.It is the best pump type for cold and hot water or general medium and similar to water in physical and chemical properties.
GDL Series Vertical Multistage Pipeline Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Vacuum Suction m |
Motor power KW |
| 25GD2-12×3 | 2 | 36 | 7.5 | 1.1 |
| 25GD2-12×4 | 2 | 48 | 7.5 | 1.1 |
| 25GD2-12×5 | 2 | 60 | 7.5 | 1.5 |
| 25GD2-12×6 | 2 | 72 | 7.5 | 1.5 |
| 25GD2-12×7 | 2 | 8496 | 7.5 | 2.2 |
| 25GD2-12×8 | 2 | 108 | 7.5 | 2.2 |
| 25GD2-12×9 | 2 | 120 | 7.5 | 2.2 |
| 25GD2-12×10 | 2 | 132 | 7.5 | 3 |
| 25GD2-12×11 | 2 | 144 | 7.5 | 3 |
| 25GD2-12×12 | 2 | 33 | 7.5 | 3 |
| 25GD4-11×3 | 4 | 44 | 7.5 | 1.1 |
| 25GD4-11×4 | 4 | 55 | 7.5 | 2.2 |
| 25GD4-11×5 | 4 | 66 | 7.5 | 2.2 |
| 25GD4-11×6 | 4 | 77 | 7.5 | 3 |
| 25GD4-11×7 | 4 | 88 | 7.5 | 3 |
| 25GD4-11×8 | 4 | 99 | 7.5 | 3 |
| 25GD4-11×9 | 4 | 110 | 7.5 | 4 |
| 25GD4-11×10 | 4 | 121 | 7.5 | 4 |
| 25GD4-11×11 | 4 | 132 | 7.5 | 4 |
| 25GD4-11×12 | 4 | 143 | 7.5 | 4 |
| 25GD4-11×13 | 4 | 154 | 7.5 | 4 |
| Also have bigger pumps, pls contact us for more information. | ||||
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
