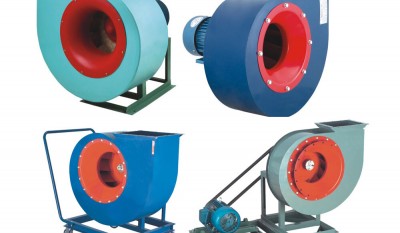

Centrifugal Ventilator B
Category:
Marine Fan
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Centrifugal Ventilator B:
China Centrifugal Ventilator B:
The centrifugal fans of Type 4-72 can be used for material transportation such as air or non-corrosive and non-ignotable gases free of stickum.The medium temperature during transportation shall be lower than 80℃;Meanwhile its dust and hard particles must be less than 150mg/m³。The fans is characterized with good aerodynamic performance,stable operation,small vibration,high efficiency,long service life and so on,and classified totally into 5 kinds of structures of A,B,C,D,F.The fans are widely used for indoor ventilation in industrial and mining enterprises,large building,hotels and restaurants and so on.

F4-72 anti-centrifugal fan mainly use glass fiber reinforced plastic(or stainless steel)materials to made of impeller,body,inlet and other components and electrical component,can be used to transport corrosive gases,the performance and specifications are the same as with the 4-72.

Specification:

machine(No) rotation speed(r/min) matching motor(kW) volume flow(m³/h) total pressure(Pa)
2.8A 2900 1.5 1131~2356 792~483
3.2A 2900 2.2 1688~3517 1300~792
1450 1.1 844~1758 324~198
3.6A 2900 3 2664~5268 1578~989
1450 1.1 1332~2634 393~247
4A 2900 5.5 4012~7419 2014~1320
1450 1.1 2006~3709 501~329
4.5A 2900 7.5 5712~10562 2554~1673
1450 1.1 2856~5281 634~416
5A 2900 15 7728~15445 3187~2019
1450 2.2 3864~7728 790~502
6A 1450 4 6677~13353 1139~724
960 1.5 4420~8841 498~317
6D 1450 4 6677~13353 1139~724
960 1.5 4420~8841 498~317
8D 1450 18.5 15826~29344 2032~1490
960 5.5 10478~19428 887~651
10D 1450 55 40441~56605 3202~2532
960 18.5 26775~37476 1395~1104
12D 960 45 46267~64759 2013~1593
730 18.5 35183~49244 1160~919

machine(No) rotation speed(r/min) matching motor(kW) volume flow(m³/h) total pressure(Pa)
2.8C 2900 1.1 1131~2356 994~606
2200 0.37 994~1522 556~443
1800 0.25 813~1245 372~296
3.2C 2900 1.5 1688~3517 1300~792
2200 1.75 1483~2273 726~579
1800 1.55 1213~1860 486~387
3.6C 2900 3 2664~5268 1578~989
2200 1.5 2310~3434 881~723
1800 0.75 1890~2810 590~483
4C 2900 5.5 4012~7419 2014~1320
2300 2.2 3573~5491 1238~917
2000 1.5 3107~4775 936~694
1700 1.1 2641~4058 676~501
4.5C 2900 7.5 5712~10562 2554~1673
2300 4 5088~7819 1570~1163
2000 3 4428~6799 1187~879
1700 2.2 3761~5779 858~635
5C 2900 15 7728~15445 3187~2019
2300 7.5 7022·1133 1978~1468
2000 5.5 6106~9881 1495~1110
1700 3 5190~8399 1080~802

machine(No) rotation speed(r/min) matching motor(kW) volume flow(m³/h) total pressure(Pa)
6C 2240 15 10314~20628 2734~1733
2000 11 9209~18418 2176~1380
1800 7.5 8288~16576 1760~1116
1600 5.5 7367~14734 1389~881
1250 3 5756~11511 846~537
1120 2.2 5157~10315 679~431
900 1.5 4144~8288 438~278
800 1.1 3684~7367 346~220
8C 1800 30 19646~25240 3143~3032
1600 37 28105~36427 2920~2302
22 17462~22435 2478~2390
30 24982~32380 2303~1816
1250 11 13643~25297 1507~1106
1120 7.5 12224~15705 1209~1166
11 17487~22666 1124~887
1000 5.5 10914~14022 963~929
1400 7.5 15614~20237 895~707
900 4 9823~12620 779~752
5.5 14052~18213 725~572
800 3 8732~16190 615~452
710 3 7749~14368 485~450
10C 1250 37 34863~48797 2373~1877
1120 30 31237~43722 1902~1505
1000 18.5 27890~39038 1514~1199
900 15 25101~35134 1225~970
800 11 22312~31230 967~766
710 7.5 19802~27717 761~603
630 5.5 17571~24594 599~475
560 4 15618~21861 473~375
12C 1120 75 53978~75552 2746~2172
1000 45 48195~60397 2185~1969
55 63953~67457 2185~1969
900 37 43375~60712 1859~1729
800 22 38556~41973 1395`1376
30 45391~53996 1320~1104
710 18.5 34218~47895 1097~869
630 15 30362~42498 863~684
560 7.5 26989~29381 682~673
11 31774~37776 646~540
500 7.5 24907~33728 543~430
16C 900 160 102810~143910 3175~2497
710 75 8110~113520 1957~1549
630 55 71971~100730 1538~1218
500 30 57120~79950 967~966
400 15 45696~63960 618~490
310 7.5 35985~50368 383~303
20C 710 220 158410~221730 3069~2427
630 160 140560~196750 2411~1908
500 75 11560~156150 1514~1199
400 37 89250~124920 967~766
315 22 70284~98376 599~475
250 11 55781~78076 377~299

Picture:

Product Advantage:
1.Satisfactory Quality
2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery:
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
