Centrifugal Boiler Draught Fan:
China Centrifugal Boiler Draught Fan:
The centrifugal boiler draught fans of Type Y5-47 is characterized with low noise,simple structure and flexibly adjustable air volume and wind direction,appropriately used in industrial boilers burning various coal materials and equipped with dust extraction devices.Its air transportation temperature is less than 250℃。The driving models of this fan is two of Type Cand Type D,equipped with water-cooling whole bearing block and air volume adjusting door.If the damper is put into use,user can directly put the fans on the concrete ground without anchor bolts,which is easy for installment and debug.
Specification:
| machine(No) | rotation speed (r/min) | matching motor(kW) | volume flow(m³/h) | total pressure(Pa) |
| 3.15C | 3250 | 1.5 | 1323~2496 | 1049~716 |
| 2750 | 1.5 | 1120~2112 | 745~520 | |
| 4C | 3300 | 4 | 2751~5190 | 1922~1393 |
| 2900 | 3 | 2417~4561 | 1481~1079 | |
| 5C | 2900 | 7.5 | 4723~8909 | 2324~1687 |
| 2620 | 5.5 | 4267~8048 | 1893~1373 | |
| 6C | 2850 | 18.5 | 8020~15129 | 3364~2452 |
| 2620 | 15 | 7372~13908 | 2844~2069 | |
| 7C | 2580 | 30 | 11529~21747 | 3756~2746 |
| 2050 | 15 | 9159~17280 | 2373~1716 | |
| 8C | 2020 | 30 | 13474~25417 | 3001~2187 |
| 1860 | 22 | 12407~23404 | 2550~1853 | |
| 9C | 1900 | 45 | 18045~34039 | 3364~2452 |
| 1800 | 37 | 17095~32247 | 3020~2197 |

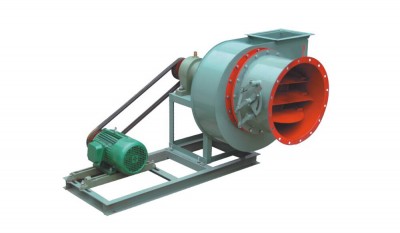

Picture:
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
