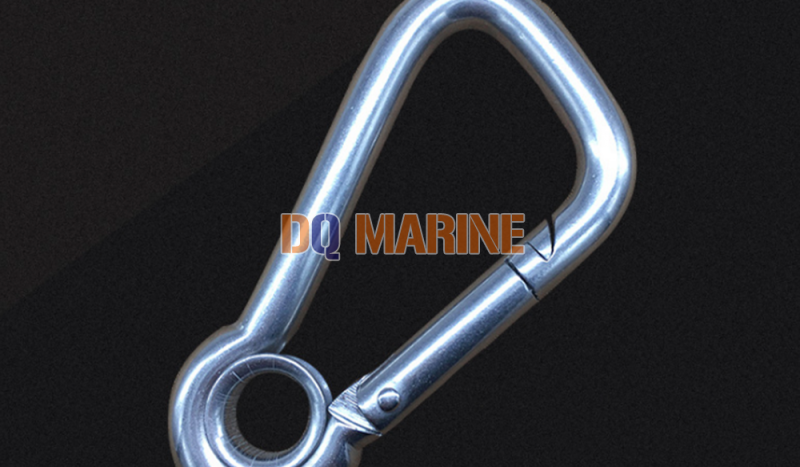

Stainless Steel Angle Snap Hook with Eye
Stainless Steel Angle Snap Hook with Eye Introduction
Material: AISI 304/AISI 316
Used for quick link. The must fittings for outdoor climbing.
The Product Detail
| Size (ФA) | C | D | F | BL | WT |
| mm | mm | mm | mm | KG | KG |
| 5 | 50 | 5 | 9 | 240 | 0.018 |
| 6 | 60 | 5 | 10 | 240 | 0.03 |
| 8 | 80 | 10 | 13 | 450 | 0.07 |
| 10 | 100 | 13 | 18 | 650 | 0.14 |
| 11 | 120 | 13 | 24 | 850 | 0.2 |
