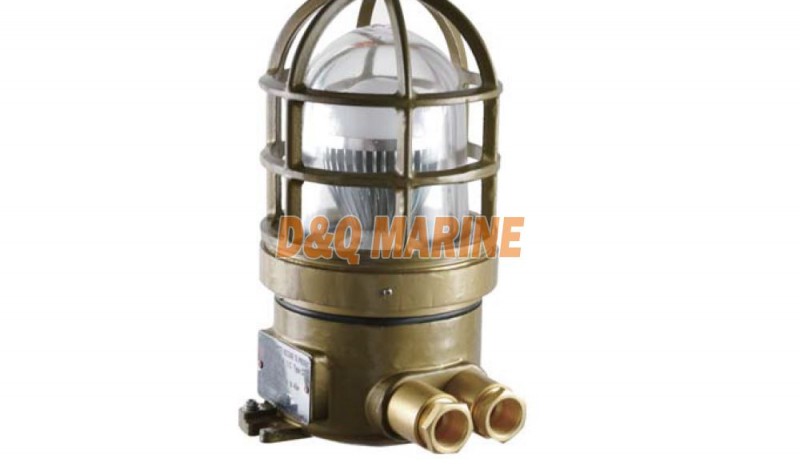

CFD1LED LED Explosion Proof Light
The scope of application
Suitable for illumination for possible accumulation of explosive gas mixtures of cabin or open spaces.
Products feature
1. The shell adopts good quality cast brass, lampshade adopts hard borax glass, with brass guard.
2. The lamp body adopts seal structure with high waterproof and corrosion resistance.
3. LED light source, long working life, high light intensity, low energy consumption.
4.The lamps can work normally under the temperature -20℃ ～+40℃.
7. The cable outside diameter is Φ10～Φ12 mm.
Adopt standard
Conform to 3836.1; GB12045; EN50014; EN50018; EN60079; GB17743; GB19510.1; GB19510.14 standard.
Installation
CFD1LED LED Explosion Proof Light Specification
| Type | CFD1LED-1 | CFD1LED-2 | CFD1LED-3 |
| Explosion Proof Mark | Ex d‖CT4 | ||
| Voltage(V) | 220V | ||
| Light Source | LED | ||
| Power(W) | 12 | ||
| Protection Class | IP66 | ||
| Weight( Kg) | 4 | ||
