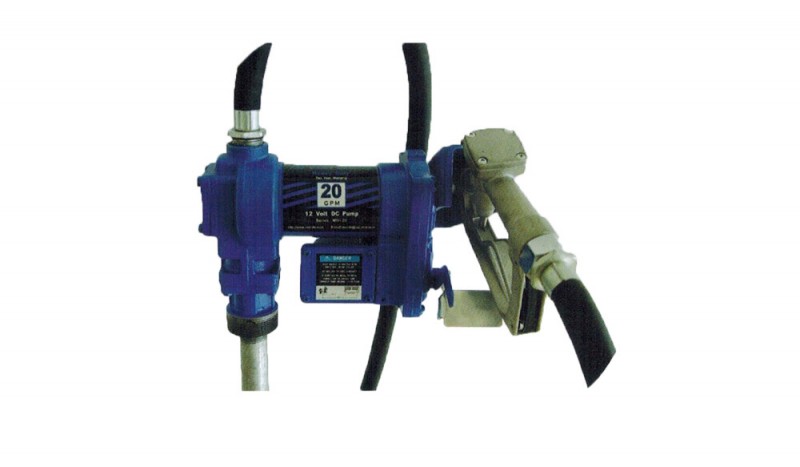

DYB50/75-DC12B Electric Transfer Pump, Explosion Proof
China DYB50/75-DC12B Electric Transfer Pump, Explosion Proof:
For diesel,gasoline,kerosene,mineral spirits,solvent and heptantneExplosion-proof permanent magnet motorwith thermal overload protection
Built-in stainer,bypass valve
Ball bearing construction,no lubrication required
1"diameter,12"hose with static ground wire and 1"manual nozzle nozzle boot that protectsagainst dirt and contamination
2"threaded base for tank openings
Corrosion-proof section pipe
Rain proof,Water proof
30-minute duty cycle,not for continuous operation
FM-40G meter in gallons orFM-120 meter in liters
Specification：
| Model | DYB50-DC12B/24B | DYB75-DC12B |
| Body Material | Cast Iron | Cast Iron |
| Max.Flowrate | 15GPM(57LPM) | 20GPM(76LPM) |
| Explosion-Proof Motor | ¼"HP | ¼"HP |
| Voltage | DC12 or DC 24 | DC12 |
| Inlet | 1" NPT | 1"NPT |
| Outlet | ¾" NPT | 1"NPT |
| Threaded Tank Adapter | 2" NPT | 2"NPT |
| Nozzle Hanger | Yes | Yes |
Picture：
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
