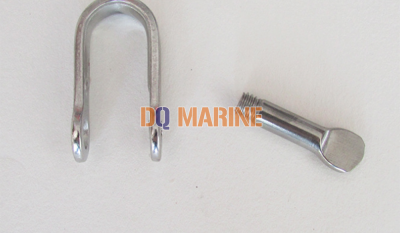

Stainless Steel Flat Dee Shackle
Stainless Steel Flat Dee Shackle Introduction
The material: AISI304/AISI316
The shackle body material is made by punching press.
With low producing cost and high efficiency.
The Product Detail
| Size (M) | S | H | W | E | D |
| mm | mm | mm | mm | mm | mm |
| M4 | 1.5 | 17 | 10 | 6 | 9 |
| M5 | 2 | 20 | 12 | 7 | 11 |
| M6 | 3 | 24 | 15 | 8 | 12 |
| M8 | 4 | 44 | 21 | 10 | 18 |
