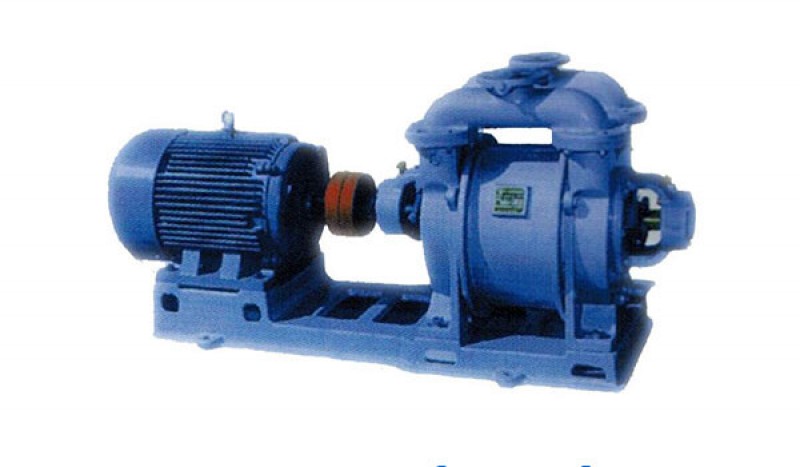

SK Series Water Ring Vacuum Pump
China SK Series Water Ring Vacuum Pump:
SK series water ring vacuum pump is used to pump or compress air and other non-corrosive, insoluble in water, do not contain solid particles of gas, in order to form vacuum and pressure in closed container.Inhalation of gas permits mixing of a small amount of liquid.
Main Technical Data
| Model |
Pumping volume L/s |
Limiting pressure MPa |
Rev speed r/min |
Motor power KW |
| SK-1.5 | 1.35 | -0.091 | 1440 | 4 |
| SK-3 | 2.8 | -0.093 | 1440 | 7.5 |
| SK-6 | 5.4 | -0.093 | 1460 | 15 |
| SK-9 | 8.1 | -0.093 | 970 | 22 |
| SK-12 | 10.8 | -0.093 | 980 | 30 |
| SK-15 | 13.5 | -0.093 | 980 | 45 |
| SK-20 | 18 | -0.093 | 740 | 55 |
| SK-30 | 27 | -0.093 | 740 | 75 |
| SK-42 | 37.8 | -0.093 | 740 | / |
| CSK-60 | 54 | -0.093 | 590 | / |
| SK-85 | 76.5 | -0.093 | 590 | / |
| SK-120 | 108 | -0.093 | 490 | / |
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
