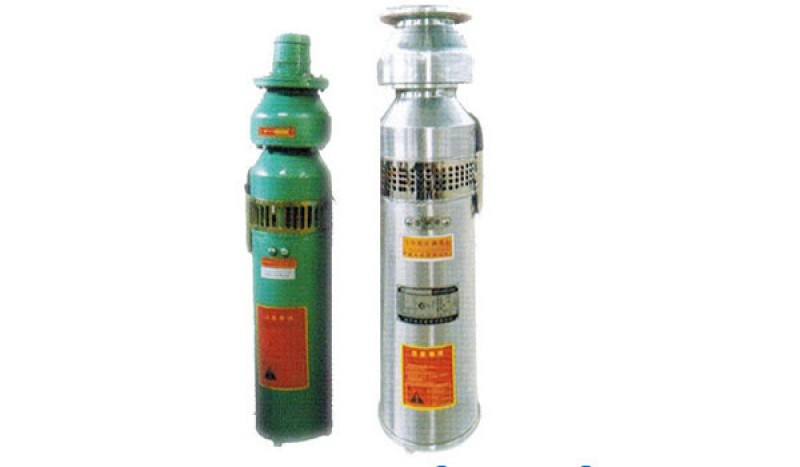

QSP Series Electric Pump For Fountain
China QSP Series Electric Pump For Fountain:
The impeller of QSP series pump is equipped with anti-loosening device, and the motor is cooled by self-circulating water-filled type. The motor cavity is made of imported anti-rust enamel, and the filter cover is made of all-stainless steel, which improves the corrosion resistance of the underwater motor. Through the above structural improvements, the submersible pump is more suitable for the frequent starting requirements of fountain projects.The product has small size, light weight, easy to move, easy operation and maintenance, safe and reliable use.
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Current r/min |
Motor power KW |
| QSP(F)10-10-0.55 | 10 | 10 | 2.2 | 0.55 |
| QSP(F)15-7-0.55 | 16 | 7 | 2.2 | 0.55 |
| QSP(F)10-13-0.75 | 10 | 13 | 2.6 | 0.75 |
| QSP(F)15-10-0.75 | 15 | 10 | 2.6 | 0.75 |
| QSP(F)25-6-0.75 | 25 | 25 | 2.6 | 0.75 |
| QSP(F)10-13-0.75 | 10 | 40 | 2.6 | 0.75 |
| QSP(F)25-9-1.1 | 25 | 15 | 3.2 | 1.1 |
| QSP(F)40-6-1.1 | 40 | 65 | 3.2 | 1.1 |
| QSP(F)15-14-1.1 | 15 | 25 | 3.2 | 1.1 |
| QSP(F)65-5-1.1 | 65 | 40 | 3.2 | 1.1 |
| QSP(F)25-12-1.5 | 25 | 15 | 4.2 | 1.5 |
| QSP(F)40-8-1.5 | 40 | 20 | 4.2 | 1.5 |
| QSP(F)15-26-2.2 | 15 | 25 | 6.1 | 2.2 |
| QSP(F)20-20-2.2 | 20 | 40 | 6.1 | 2.2 |
| QSP(F)25-17-2.2 | 25 | 7 | 6.1 | 2.2 |
| QSP(F)40-13-2.2 | 40 | 4.5 | 6.1 | 2.2 |
| QSP(F)65-7-2.2 | 65 | 16 | 6.1 | 2.2 |
| QSP(F)100-4.5-2.2 | 100 | 18 | 6.1 | 2.2 |
| QSP(F)40-16-3 | 40 | 16 | 8.5 | 3 |
| QSP(F)40-18-3 | 40 | 25 | 8.5 | 3 |
| QSP(F)45-16-3 | 45 | 20 | 8.5 | 3 |
| Also have bigger pumps, pls contact us for more information. | ||||
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
