QBY3 Series 3G Pneumatic Diaphragm Pump:
China QBY3 Series 3G Pneumatic Diaphragm Pump:
QBY3 third generation pneumatic diaphragm pump produced by our company is a new type of conveying equipment, which is the most novel pump in China.Using compressed air as the power source, for all kinds of corrosive liquid, liquid with particles, high viscosity, volatile, flammable, highly toxic liquid, can be drained.

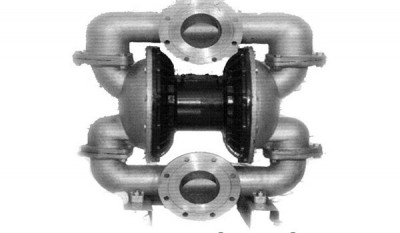

QBY3 Series 3G Pneumatic Diaphragm Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Suction m |
Minimum air compressor power kw |
| QBY3-10 | 17 | 70 | 3 | 3 |
| QBY3-15 | 17 | 70 | 3 | 3 |
| QBY3-20 | 50 | 70 | 4 | 3 |
| QBY3-25 | 50 | 70 | 4 | 3 |
| QBY3-32 | 100 | 80 | 5 | 5.5 |
| QBY3-40 | 150 | 80 | 5 | 5.5 |
| QBY3-50 | 150 | 80 | 5 | 5.5 |
| QBY3-65 | 340 | 80 | 5 | 7.5 |
| QBY3-80 | 340 | 80 | 5 | 7.5 |
| QBY3-100 | 570 | 80 | 5 | 11-15.0 |
| QBY3-125 | 1000 | 80 | 5 | 18.5 |
| QBY3-150 | 1000 | 80 | 5 | 18.5 |
