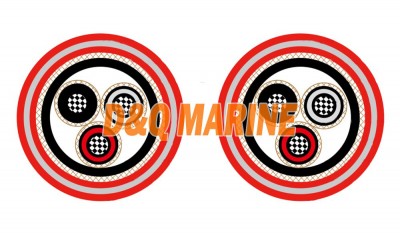

NEK 606 Marine Cable P30 RFOU-HCF / TFOU-HCF 6/10(12) kV
Category:
NEK 606 Offshore & Marine Cables
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
NEK 606 Marine Cable P30 RFOU-HCF / TFOU-HCF 6/10(12) kV:
Applications

Marine Cable P30 RFOU-HCF / TFOU-HCF 6/10(12) kV cables are fire resistant, flame retardant, low smoke and halogen free, used for emergency control, power and lighting systems that need to be operational during a 1100℃hydrocarbon fire.

Standards

IEC 60092-354

IEC 60092-351

IEC 60092-359

IEC 60332-1

IEC 60331-21

IEC 60332-3-22

IEC 60754-1,2

IEC 61034-1,2

NEK 606:2004

Construction
  • Conductors : Circular tinned annealed stranded copper to IEC 60228 class 2.
  • Conductor Screen : Semi conducting material.
  • Insulation : Halogen-free EPR. XLPE can be offered as an option.
  • Insulation Screen : Semi conducting material and tinned copper wire braid.
  • Bedding : Halogen free compound.
  • Armour : Tinned copper wire braid.
  • Outer Sheath1 : Halogen free thermosetting compound, SHF2, coloured red.
  • HC-fire protection : Extruded thermoplastic fire protection compound.
  • Taping : Lapped glass fibre tape.
  • Outer Sheath2 : Flame retardant halogen-free thermoplastic compound, SHF1, coloured red.
Technical Data:

Construction No. of cores×Cross section Nominal Insulation Thickness Nominal Diameter Over Bedding Nominal Diameter Over Sheath1 Nominal Overall Diameter Nominal Weight
(mm²) mm mm mm mm kg/km
1×70 3.4 23.5 30 62 5220
1×95 3.4 25.5 32 64.5 5900
1×120 3.4 27.5 34 66.5 6340
1×150 3.4 28.5 35 67.5 6670
1×185 3.4 30.5 36.5 69 7320
1×240 3.4 33 39 72 8250
1×300 3.4 35 41.5 74.5 9280
3×50 3.4 47 55 89 10970
3×95 3.4 54 62.5 97 14230
3×150 3.4 60 70.5 106 17400

Mechanical and Thermal Properties
  • Bending Radius : 25×OD (during installation); 12×OD (fixed installed).
  • Temperature Range : -20℃ ~ +90℃.
