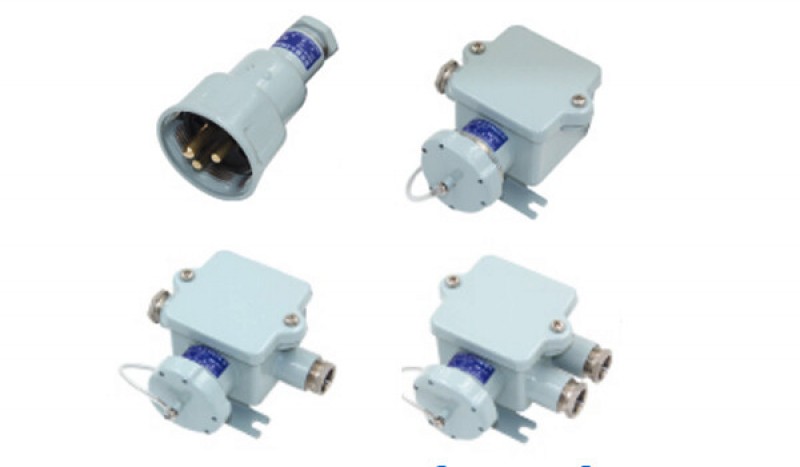

Marine Stainless Steel Plug and Socket
China Marine Stainless Steel Plug and Socket:
1.Material: stainless steel
2.Protection class:plug:DIN89267(CB3412-92)socket:DIN89262(CB3412-92)
3.Be applied the connection and power-off electrical circuit in low marine Voltage DC or AC.
5.The pulling out stress for single pole should not be ≥4N.
6.The temperature rise of conductive pare should not be over 40K.
7.Class of protection is IP56,IP67 stainless steel.
8.Metal housing should have good earthing device.
Technical Data:
| Rating Voltage | 24V | 110V | 220V | 380/440V |
| Common cable type | CTG101-1 | CTG101-2 | CTG101-3 | CTG101-5 |
| Shield cable type | CTG111-1 | CTG111-2 | CTG111-3 | CTG111-5 |
| weight | 0.6kg | 0.6kg | 0.6kg | 0.6kg |
| Rating Voltage | 24V | 110V | 220V | 380/440V |
| Common cable type | CZG101-1 | CZG101-2 | CZG101-3 | CZG101-5 |
| Shield cable type | CZG111-1 | CZG111-2 | CZG111-3 | CZG111-5 |
| weight | 0.8kg | 0.8kg | 0.8kg | 0.8kg |
| Rating Voltage | 24V | 110V | 220V | 380/440V |
| Common cable type | CZG109-1 | CZG109-2 | CZG109-3 | CZG109-4 |
| Shield cable type | CZG119-1 | CZG119-2 | CZG119-3 | CZG119-4 |
| weight | 0.8kg | 0.8kg | 0.8kg | 0.8kg |
| Rating Voltage | 24V | 110V | 220V | 380/440V |
| Common cable type | CZG201-1 | CZG201-2 | CZG201-3 | CZG201-5 |
| Shield cable type | CZG211-1 | CZG211-2 | CZG211-3 | CZG211-5 |
| weight | 1.0kg | 1.0kg | 1.0kg | 1.0kg |
| Rating Voltage | 24V | 110V | 220V | 380/440V |
| Common cable type | CZG202-1 | CZG202-2 | CZG202-3 | CZG202-5 |
| Shield cable type | CZG212-1 | CZG212-2 | CZG212-3 | CZG212-5 |
| weight | 1.0kg | 1.0kg | 1.0kg | 1.0kg |
| Rating Voltage | 24V | 110V | 220V | 380/440V |
| Common cable type | CZG209-1 | CZG209-2 | CZG209-3 | CZG209-4 |
| Shield cable type | CZG219-1 | CZG219-2 | CZG219-3 | CZG219-4 |
| weight | 1.0kg | 1.0kg | 1.0kg | 1.0kg |
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
