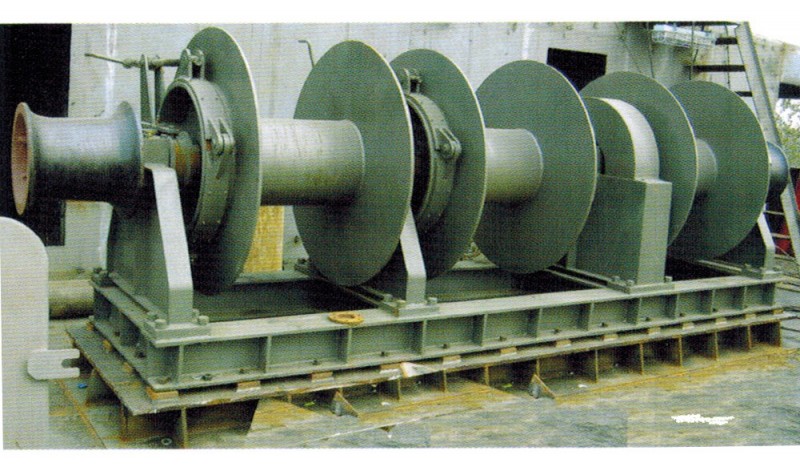

92Kn Hydraulic Anchor Windlass
92Kn Hydraulic Anchor Windlass
The hydraulic anchor windlass is installed on the main deck of the ship's first raft for the anchoring of the ship and for anchoring the tether.The abchor windlass is mainly composed of a base, a bracket, an anchor sprocket, a brake, a sprocket, a gearbox, an electric control system (except a manual windlass), an electric windlass has an electric motor, and a hydraulic windlass has a hydraulic pumping station.
Drwaing
Technical specifications
|
Chain Dia. (mm) |
Working
Load (KN) |
Supporting
Load (KN) |
Working Speed (m/min) |
Warping Load (KN) |
Warping Speed (m/min) |
Motor Power (KW) |
Dimensions(mm) |
Weight (ton) |
|||||
| M2 | M3 | M2 | M3 | A | B | C | D | ||||||
| 19 | 15 | 95 | 9 | 8 | 8.5 | 7.5 | 600 | 1915 | 1360 | 1075 | 1.52 | ||
| 20.5 | 18 | 110 | 9 | 8 | 8.5 | 7.5 | 600 | 1915 | 1360 | 1075 | 1.52 | ||
| 22 | 21 | 126 | 9 | 8 | 8.5 | 7.5 | 600 | 1915 | 1360 | 1075 | 1.52 | ||
| 24 | 25 | 27 | 149 | 214 | 9 | 10 | 8.5 | 11 | 800 | 2295 | 1565 | 1200 | 2.46 |
| 26 | 29 | 32 | 175 | 250 | 9 | 10 | 8.5 | 11 | 800 | 2295 | 1565 | 1200 | 2.46 |
| 28 | 33 | 37 | 202 | 289 | 9 | 10 | 8.5 | 15 | 1000 | 2440 | 1900 | 1400 | 3.28 |
| 30 | 38 | 43 | 261 | 331 | 9 | 30 | 8.5 | 15 | 1000 | 2440 | 1900 | 1400 | 3.28 |
| 32 | 44 | 49 | 262 | 375 | 9 | 30 | 8.5 | 22 | 1000 | 2750 | 2160 | 1500 | 4.25 |
| 34 | 49 | 55 | 295 | 422 | 9 | 30 | 8.5 | 22 | 1000 | 2750 | 2160 | 1500 | 4.25 |
| 36 | 55 | 62 | 329 | 473 | 9 | 30 | 8.5 | 22 | 1000 | 2750 | 2106 | 1500 | 4.25 |
| 38 | 61 | 69 | 365 | 522 | 9 | 30 | 8.5 | 30 | 1200 | 3200 | 2420 | 1650 | 6.4 |
| 40 | 68 | 76 | 403 | 576 | 9 | 50 | 8.5 | 30 | 1200 | 3200 | 2420 | 1650 | 5.1 |
| 42 | 75 | 84 | 442 | 630 | 9 | 50 | 8.5 | 30 | 1200 | 3200 | 2420 | 1650 | 6.4 |
| 44 | 84 | 92 | 442 | 630 | 9 | 50 | 8.5 | 30 | 1200 | 3200 | 2420 | 1650 | 6.4 |
