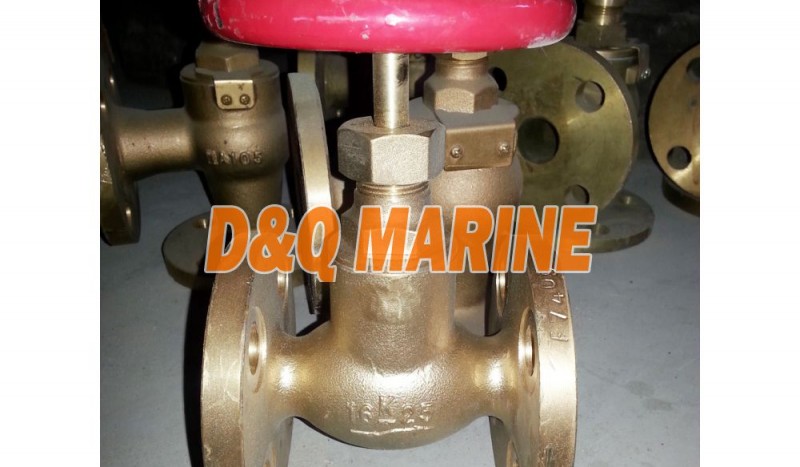

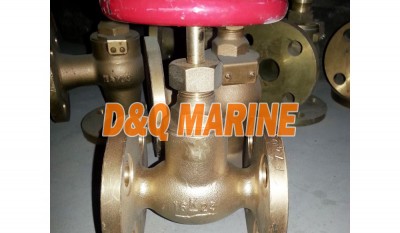

Marine Bronze/Brass Screw Down Check Globe Valve JIS F7409 16K

Marine Bronze/Brass Screw Down Check Globe Valve JIS F7409 16K

China Marine Bronze/Brass Screw Down Check Globe Valve JIS F7409 16K:

Marine Screw Down Check Globe Valve is also called as marine stop check valve, marine SDNR valve, marine non-return globe valve,marine globe check valve. It is used to open and close the pipe system, prevent the backflow medium and adjust the flow rate, has the function of globe valve and check valve. Marine Bronze/Brass Screw Down Check Globe Valve can be used for sea water, fresh water, fuel oil, lubrication oil & steam pipe system.

If the size is DN10~DN40, the bonnet is screwed type, if the size is DN50 and above DN50, the bonnet is bolted type.

Technical Specification:

1.Design & Manufacturing Standard: JIS F7409

2.Inspection & Test Standard: JIS F7400

3.Flange Standard: JIS B2220 16K

4.Hydraulic Pressure Test: Body-3.3Mpa, Seat-2.42Mpa

5. Max Working Pressure: 1.6Mpa for air, gas, oil, pulsation water and steam of 205℃ or less, 2.2Mpa for non-shock water of 120℃ or less

6. Warranty: 12months

7. Certificate: CCS, ABS, BV, DNV/GL, RINA, LR, NK, IRS, RMRS

Main Material:

1-Body: Bronze / Brass

2-Disc: Bronze / Brass

3-Stem: Brass

4-Bonnet:Bronze / Brass

5-Handwheel: Cast Iron (HT200)

Main Data for Joining(mm):
