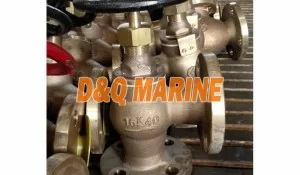

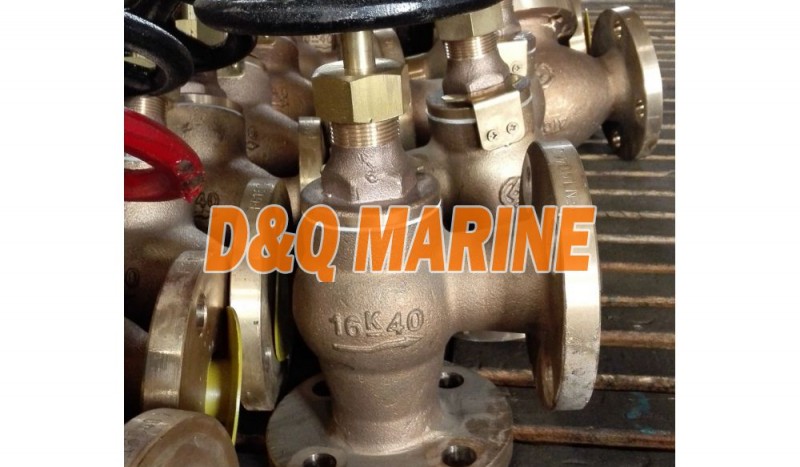

Marine Bronze/Brass Angle Valve JIS F7304 16K

Marine Bronze/Brass Angle Valve JIS F7304 16K

China Marine Bronze/Brass Angle Valve JIS F7304 16K:

Marine Angle Valve is marine angle globe valve or marine angle stop valve. It is used to open/close the pipe system and adjust the flow rate in the pipe system whose angle between inlet and outlet is 90 degree. Marine Bronze/Brass Angle Valve can be used for sea water, fresh water, fuel oil, lubrication oil & steam pipe system.

If the size is DN10~DN40, the bonnet is screwed type, if the size is DN50 and bove DN50, the bonnet is bolted type.

Technical Specification:

1.Design & Manufacturing Standard: JIS F7304

2.Inspection & Test Standard: JIS F7400

3. Connection Type: Flange

4.Flange Standard: JIS B2220 16K

5.Hydraulic Pressure Test: Body-3.3Mpa, Seat-2.42Mpa

6. Max Working Pressure: 1.6Mpa for air, gas, oil, pulsation water and steam of 205℃ or less, 2.2Mpa for non-shock water of 120℃ or less

7. Warranty: 12months

8. Certificate: CCS, ABS, BV, DNV/GL, RINA, LR, NK, IRS, RMRS

Main Material:

1-Body: Bronze / Brass

2-Disc: Bronze / Brass

3-Stem: Brass

4-Bonnet:Bronze / Brass

5-Handwheel: Cast Iron (HT200)

Main Data for Joining(mm):
