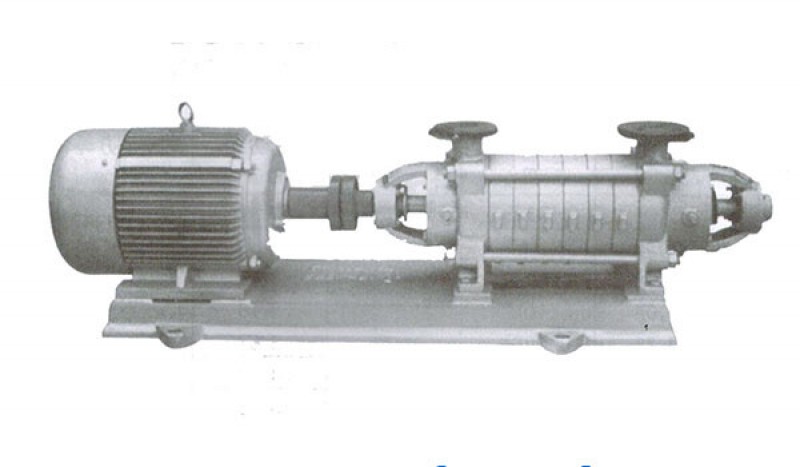

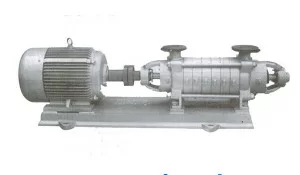

CWD marine horizontal multi-stage centrifugal pump
China CWD marine horizontal multi-stage centrifugal pump:
CWD pump is a Marine horizontal multi-stage centrifugal pump, suitable for conveying clean water (including impurity mass less than 1%, particle size less than 0.1 mm) and other liquids similar to the physical and chemical properties of clean water.
CWD marine horizontal multi-stage centrifugal pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| CWD6-25×4 | 3.75 | 76.5 | 2950 | 5.5 |
| CWD6-25×5 | 3.75 | 102 | 7.5 | |
| CWD6-25×6 | 3.75 | 127.5 | 7.5 | |
| CWD6-25×7 | 3.75 | 153 | 11 | |
| CWD6-25×8 | 3.75 | 178.5 | 11 | |
| CWD6-25×9 | 3.75 | 204 | 15 | |
| CWD6-25×10 | 3.75 | 229.5 | 15 | |
| CWD6-25×11 | 3.75 | 255 | 18.5 | |
| CWD6-25×12 | 3.75 | 280.5 | 18.5 | |
| CWD12-25×3 | 7.5 | 306 | 18.5 | |
| CWD12-25×4 | 7.5 | 84.6 | 7.5 | |
| CWD12-25×5 | 7.5 | 112.3 | 11 | |
| CWD12-25×6 | 7.5 | 141 | 11 | |
| CWD12-25×7 | 7.5 | 169.2 | 15 | |
| CWD12-25×8 | 7.5 | 197.4 | 15 | |
| CWD12-25×9 | 7.5 | 225.6 | 18.5 | |
| CWD12-25×10 | 7.5 | 253.8 | 18.5 | |
| CWD12-25×11 | 7.5 | 282 | 22 | |
| CWD12-25×12 | 7.5 | 310.2 | 22 | |
| CWD25-25×3 | 15 | 338.4 | 30 | |
| CWD25-25×4 | 15 | 102 | 15 | |
| Also have bigger pumps, pls contact us for more information. | ||||
