The anchor windlass is mainly composed of a base, a bracket, an anchor sprocket, a brake, a sprocket, a gearbox, an electric control system (except a manual windlass), an electric windlass has an electric motor, and a hydraulic windlass has a hydraulic pumping station. The main technical indicators of the windlass include the diameter of the anchor chain, the nominal speed of the anchor, the rated load, the supporting load, several shifts, and the electric system. The installation of the anchor windlass on the ship should ensure that the wrap angle of the anchor chain and the sprocket is 117-120°.
Technical specifications
|
Chain Dia. (mm) |
Working
Load (KN) |
Supporting
Load (KN) |
Working Speed (m/min) |
Warping Load (KN) |
Warping Speed (m/min) |
Motor Power (KW) |

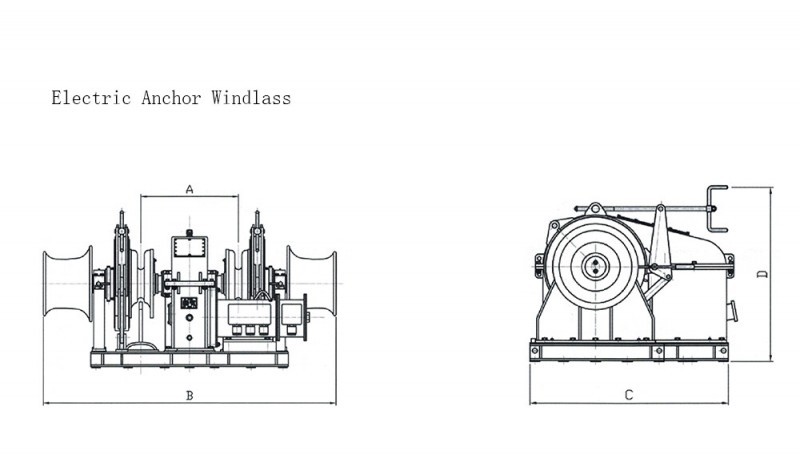

Dimensions(mm) |
Weight (ton) |
|||||
| M2 | M3 | M2 | M3 | A | B | C | D | ||||||
| 24 | 25 | 27 | 149 | 214 | 9 | 10 | 8.5 | 8.5/3.5 | 900 | 2495 | 1565 | 1400 | 3.8 |
| 26 | 29 | 32 | 175 | 250 | 9 | 10 | 8.5 | 8.5/3.5 | 900 | 2495 | 1565 | 1400 | 3.8 |
| 28 | 33 | 37 | 202 | 289 | 9 | 10 | 8.5 | 11/11/7.5 | 900 | 2495 | 1565 | 1400 | 3.8 |
| 30 | 38 | 43 | 261 | 331 | 9 | 30 | 8.5 | 11/11/7.5 | 1000 | 2595 | 1620 | 1450 | 4.5 |
| 32 | 44 | 49 | 262 | 375 | 9 | 30 | 8.5 | 16/16/11 | 1000 | 2595 | 1620 | 1450 | 4.5 |
| 34 | 49 | 55 | 295 | 422 | 9 | 30 | 8.5 | 16/16/11 | 1000 | 2595 | 1620 | 1450 | 4.5 |
| 36 | 55 | 62 | 329 | 473 | 9 | 30 | 8.5 | 16/16/11 | 1000 | 2595 | 1620 | 1450 | 4.5 |
| 38 | 61 | 69 | 365 | 522 | 9 | 30 | 8.5 | 22/22/16 | 1100 | 2800 | 1620 | 1450 | 5.5 |
| 40 | 68 | 76 | 403 | 576 | 9 | 50 | 8.5 | 22/22/16 | 1100 | 2800 | 1620 | 1450 | 5.5 |
| 42 | 75 | 84 | 442 | 630 | 9 | 50 | 8.5 | 22/22/16 | 1100 | 2800 | 1620 | 1450 | 5.5 |
