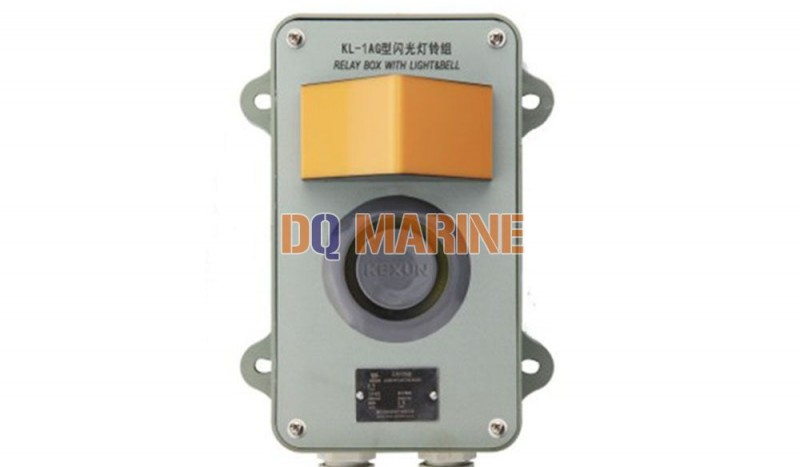

KL-1AG Relay Box with Light and Bell

KL-1AG Relay Box with Light and Bell

KL-1AG Relay Box with Light and Bell Function

KL-1AG/2AG relay box with light and bell.

Relay box with light and bell is used for auto telephone or the battery less telephone.

With call indicator light and buzzer.

With one set of passive contact output.

Technical Parameter

Power supply: KL-1AG DC24V (-25%~+30%)

KL-2AG AC220V±10%

Color: Green gray (RAL6034)

Sound pressure level: 90dB~105dB

Passive contact load (resistance): 2A 30V DC 1A/125V AC

Passive contact maximum switchover voltage: 240V AC/120V DC

IP Class: IP 44

Weight: 0.9/1.4kg

Stuffing box cable entrance hole size: 2-Ф12mm

KL-1AG Mounting Size
