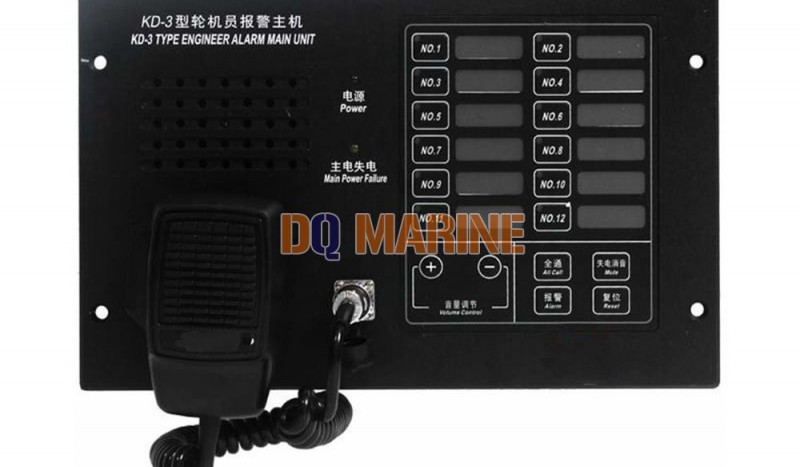

6KD-3ZQ Engineer Alarm Main Unit

6KD-3ZQ Engineer Alarm Main Unit

6KD-3ZQ Engineer Alarm Main Unit Function

6/12KD-3ZQ engineer alarm main unit.

Meet the requirements of rules.

6/12 extensions could be connected.

Mutual call and talkback can be carried out between main unit and extensions.

Main unit is capable of talkback will all extensions simultaneously.

During calling, there is passive contact output.

Technical Parameter

Output power: ≤ 20w (6-way) ≤ 40w (12-way)

Sound pressure level of calling and alarm: 80~95dB.

Main power: DC 24V

Emergency power: DC 24V

Passive contact load (resistance): 8A/250VAC

Capacity: 6-way/12-way

Color: Matt black (RAL 9005)

IP Class: IP 20

Weight: 2.2kg

6KD-3ZQ Mounting Size
