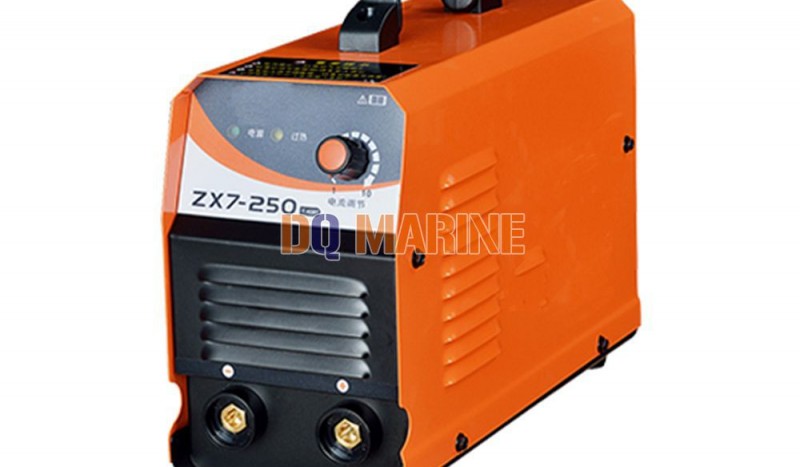

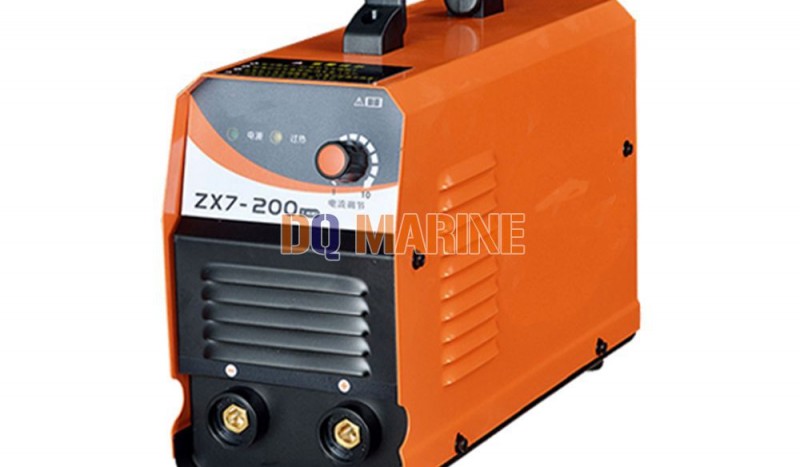

ZX7-200T 250T Inverter DC Arc Welding Machine
ZX7-200T 250T Inverter DC Arc Welding Machine Introduction
It is exquisitely made with advance inverter technology and imported IGBT single tube, quick dynamic response, high reliability.
Small size, light weight, high efficiency.
Compare to the traditional machine, No-load loss is less than 100W, saving 50% electricity.
Suitable for low carbon steel, medium steel, alloy steel and other ferrous steel.
Stable welding, less spatter, match all kinds of welding rod.
Technical Parameters
| TYPE | ZX7-200T | ZX7-250T |
| Power Voltage (V) | AC 220V ± 15% | AC 220V ± 15% |
| Frequency (HZ) | 50/60 | 50/60 |
| Rated Input Power (KVA) | 3.9 | 4.5 |
| Rated No-Load Voltage (V) | 60 | 60 |
| Output Current Adjustment (A) | 25-125 | 25-140 |
| Rated Output Voltage (V) | 25 | 25.6 |
| Duty Cycle (%) | 35 | 35 |
| No-Load Loss(W) | 60 | 60 |
| Efficiency(%) | 80 | 80 |
| Insulation Level | F | F |
| Enclosure Protection Level | IP21 | IP21 |
| Weight (kg) | 3.9 | 3.9 |
| Overall Size(mm) | 330x135x270 | 330x135x270 |
| Welding Rod Diameter(mm) | 1.6-3.2 | 1.6-3.2 |
