Centrifugal Fan
China Centrifugal Fan:
JY45-47 series centrifugal fan is widely used insmall boiler draught fan,exhausting gases containing dust,wood chip,fine fiber and so on(The dust extraction device shall be added in front of the blower,if the dust containing hard particles).As the boiler fan,when the temperature≦100℃,using ordinary motor and connection;when the temperature is at 100℃~200℃,using high temperature motor and connection,cooling wheel.Two kins of patterns of JY5-47 seriesventilation machine can be made into clockwise and reverse,the air inlet is fixed on the side.
Specification:
| machine（No） | voltage(V) | power(W) | rotation speed(r/min) | volume flow(m³/h） | total pressure(Pa) |
| JY5-47-1 | 220/360 | 180 | 2800 | 300 | ≦350 |
| JY5-47-2 | 220/380 | 250 | 2800 | 405 | 450 |
| JY5-47-3 | 220/380 | 370 | 2800 | 504 | 680 |
| JY5-47-4 | 220/380 | 550 | 2800 | 660 | 850 |
| JY5-47-5 | 220/380 | 750 | 2800 | 860 | 1020 |
| JY5-47-6 | 380 | 1100 | 2800 | 1200 | 1210 |

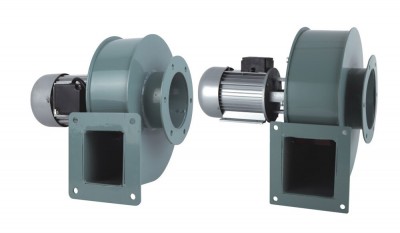

Picture:
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
