MTX 3.6/6kV, 6/10kV, 8.7/15kV Power Cables
Application Area：
These cables are XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant MV Power Cables (Halogen Free Inner Covering), and they are Widely used in shipbuilding, offshore platform construction, and port cable laying.
It's production and manufacturing according to standard of IEC 60092-350/351/354/359,IEC 60332-1 ,IEC 60332-3-22,IEC 60754-1/2,IEC 61034.
we had supply to Australia, India,South Africa,Southeast Asia , etc.

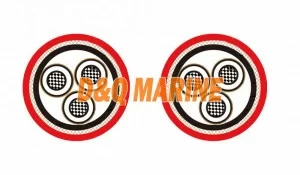

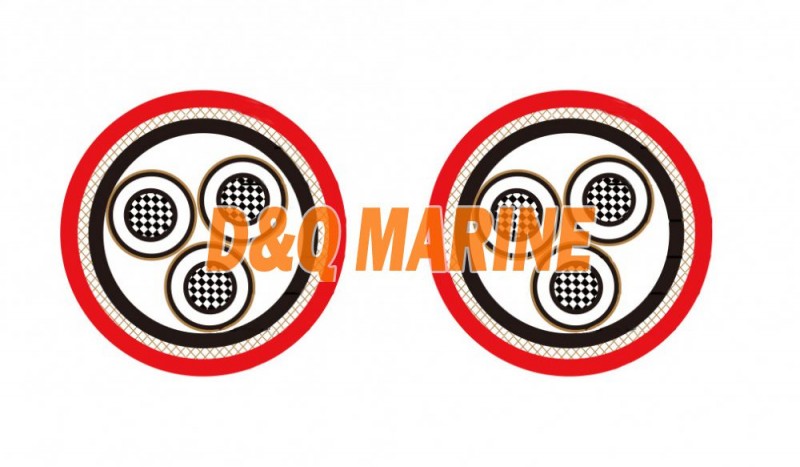

Construction:
Bending Radius for Fixed Installations: 12×OD (single core); 9×OD (three core)
Temperature Range: -30℃ ～ +80℃
Conductor Screen: Semi-conducting layer (tape/compound).
Insulation: XLPE.
Insulation Screen: Semi-conducting layer (tape/compound).
Metallic Screen: Copper tape
Inner Covering: Halogen free compound.
Armour: Copper wire braid.
Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.
No. of cores×Cross section(mm²)：
1×10,1×16,1×25 ,1×35 ,1×50, 1×70, 1×95, 1×120, 1×150, 1×185, 1×240, 1×300, 1×400, 1×500, 1×630,
3×10, 3×16, 3×25, 3×35, 3×50, 3×70, 3×95, 3×120, 3×150, 3×185, 3×240.
