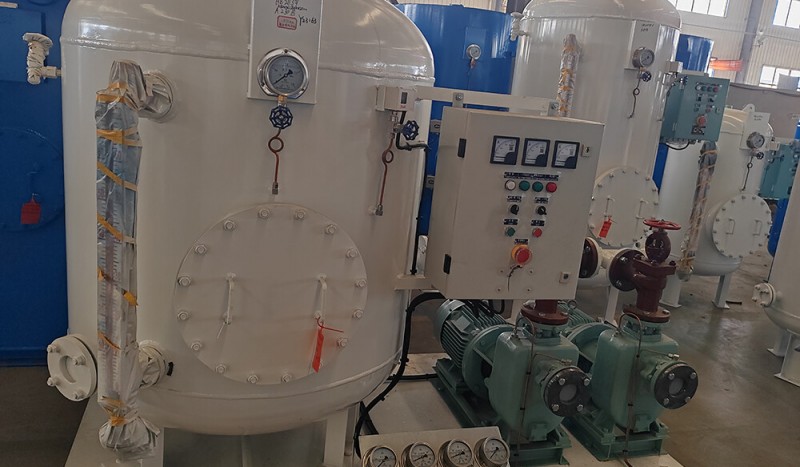

ZYG-2.5 combined pressure water tank
China ZYG-2.5 combined pressure water tank:
This series combined pressure water tank, an integration of pressure water tank, water pump and valve pipe , is the best waters upply unit that is applicable to various types of sea water and fresh water piping water supply systems. They have the characteristics of modular unit, compact structure, beautiful shape and easy installation and maintenance.
| Model | Volume (m²) | Design pressure (MPa) | Working pressure (MPa) | Water pump model | Motor power (kw) | Capacity (m³/h) | Pressure (MPa) |
| ZYG-0.2 | 0.2 | 1.5CWX-2 | 2.2 | 3 | 0.4 | ||
| ZYG-0.3 | 0.3 | 1.5CWX-2 | 2.2 | 3 | 0.4 | ||
| ZYG-0.5 | 0.5 | 1.5CWX-2 | 2.2 | 3 | 0.4 | ||
| ZYG-1.0 | 1.0 | 0.7 | 0.4 | 1.5CWX-2 | 2.2 | 3 | 0.4 |
| ZYG-1.5 | 1.5 | 1.5CWX-2 | 2.2 | 3 | 0.4 | ||
| ZYG-2.0 | 2.0 | 1.5CWX-2 | 2.2 | 3 | 0.4 | ||
| ZYG-2.5 | 2.5 | 1.5CWX-2 | 2.2 | 3 | 0.4 |
