OGM-I Series Cast Iron Oval Gear Meter
China OGM-I Series Cast Iron Oval Gear Meter:
OGM-I Series CastIron ovalgear meter has the ability to handle a wide rangeoffluid viscosities withexceptional leve;s of repeatability and durability,applying in the petrorleum,chemica,food industry,etc.Compact size,easy maintenance
Easy to read and operate mechanical display
Low pressrue drop
Specification:
| Model | OGM-I-40 | OGM-I-50 | OGM-I-80 | OGM-I-100 |
| Size | 1½" | 2" | 3" | 4" |
| Flow Range | 40~150L/min | 60~300L/min | 140~700L/min | 160~1600L/min |
| Accuracy | ±0.2% or ±0.5% | |||
| Repeatability | ≤0.05% or 0.17% | |||
| Max.Pressure | 18Bar | |||
| Package | 36*24*34cm | 41*28*38.5cm | 44*34*57cm | 47*38*46cm |
| Net Weight | 16kg | 25.5kg | 45kg | 65kg |
| Gross Weight | 20kg | 28kg | 48kg | 73kg |
| Dimension | 1pc/Wood Case | |||

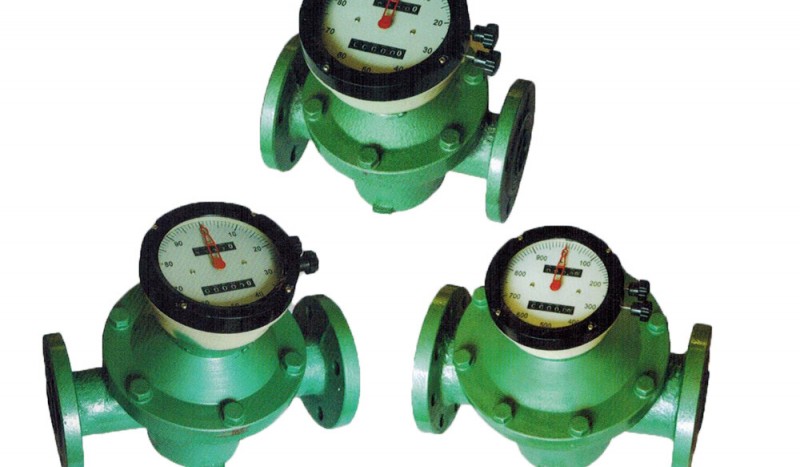

Picture:
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
