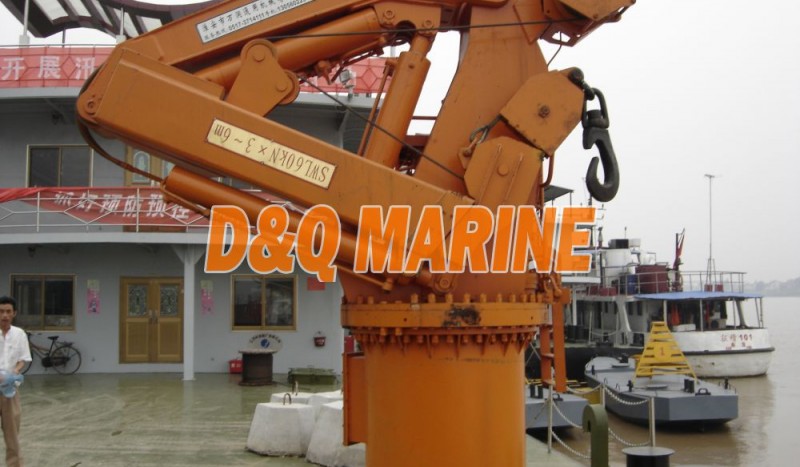

Knuckle jib crane
Knuckle jib crane
Knuckle jib crane is used on marine for lifting sundries, cargo oil hose and manufacture of products comply in full compliance with current and applicable rules for lifting appliance.
All class certificate are available.
Regular parameter as following;
| Type | SWL | Outreach(m) | Hoisting speed | Slewing speed | List+Trim | Motor power |
| T | Max./min. | m/min | r/min | Degree | kw | |
| TKC10 | 1 | 15/2.2 | 0--20 | 0-1 | 5+2 | 15 |
| TKC30 | 3 | 15/2.2 | 0--20 | 0-1 | 5+2 | 25 |
| TKC50 | 5 | 15/2.2 | 0--20 | 0-1 | 5+2 | 45 |
| TKC80 | 8 | 15/2.2 | 0--20 | 0-1 | 5+2 | 60 |
| TKC100 | 10 | 15/2.2 | 0--20 | 0-1 | 5+2 | 75 |
