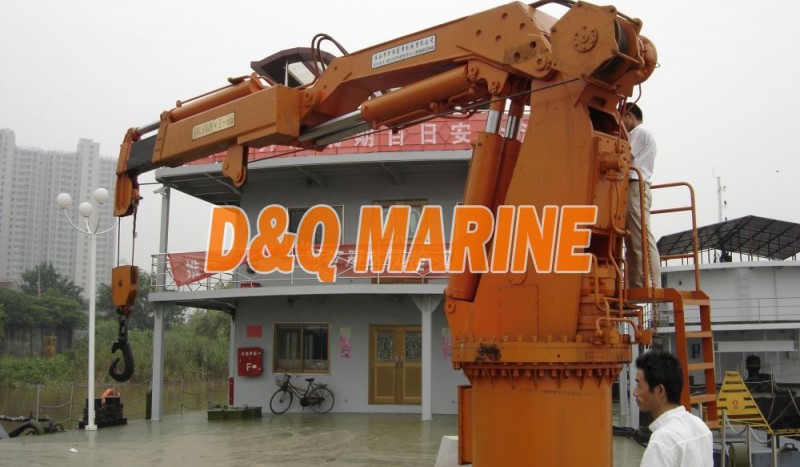

Telescope crane
Telescope crane
Telescope crane is used on board for lifting oil hose and daily material.
With compact size and varies boom length. Have different stage of stretch.
Regular parameter as following;
| Type | SWL | Outreach(m) | Hoisting speed | Slewing speed | List+Trim | Motor power |
| T | Max./min. | m/min | r/min | Degree | kw | |
| TC30 | 3 | 15/2.6 | 0--20 | 0-1 | 5+2 | 22.5 |
| TC50 | 5 | 15/2.6 | 0--20 | 0-1 | 5+2 | 35 |
| TC80 | 8 | 15/2.6 | 0--20 | 0-1 | 5+2 | 60 |
| TC100 | 10 | 15/2.6 | 0--20 | 0-1 | 5+2 | 75 |
| TC150 | 15 | 15/2.6 | 0--20 | 0-1 | 5+2 | 110 |
