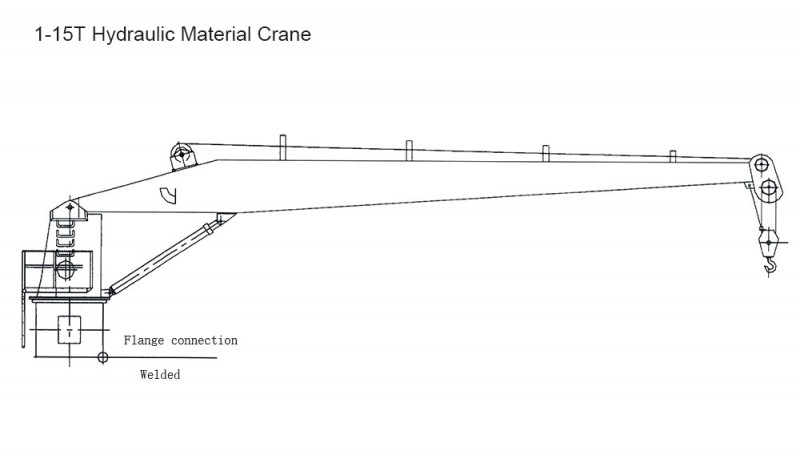

10t Hydraulic Material Crane
Technical specifications
|
Working Load (t) |
Working Radius (m) |
Liffing Speed (m/min) |
Luffing Time (s) |
Slewing Speed (r/min) |
Motor Power (KW) |
| 1 | 8 | 15 | 30 | 1 | 11 |
| 10 | 15 | 45 | 1 | 11 | |
| 12 | 15 | 60 | 1 | 11 | |
| 2 | 12 | 15 | 30 | 1 | 15 |
| 16 | 15 | 45 | 1 | 15 | |
| 20 | 15 | 60 | 1 | 18.5 | |
| 3 | 12 | 15 | 30 | 1 | 22 |
| 16 | 15 | 45 | 1 | 22 | |
| 20 | 15 | 60 | 1 | 22 | |
| 5 | 12 | 15 | 45 | 1 | 37 |
| 16 | 15 | 60 | 1 | 37 | |
| 20 | 15 | 80 | 1 | 37 | |
| 8 | 12 | 15 | 60 | 1 | 55 |
| 16 | 15 | 80 | 1 | 55 | |
| 20 | 15 | 90 | 1 | 55 | |
| 10 | 16 | 15 | 70 | 1 | 55 |
| 20 | 15 | 90 | 1 | 55 | |
| 24 | 15 | 90 | 1 | 55 | |
| 15 | 16 | 15 | 70 | 1 | 75 |
| 20 | 15 | 90 | 1 | 75 | |
| 24 | 15 | 90 | 1 | 75 |
Note:Design according to client request.
