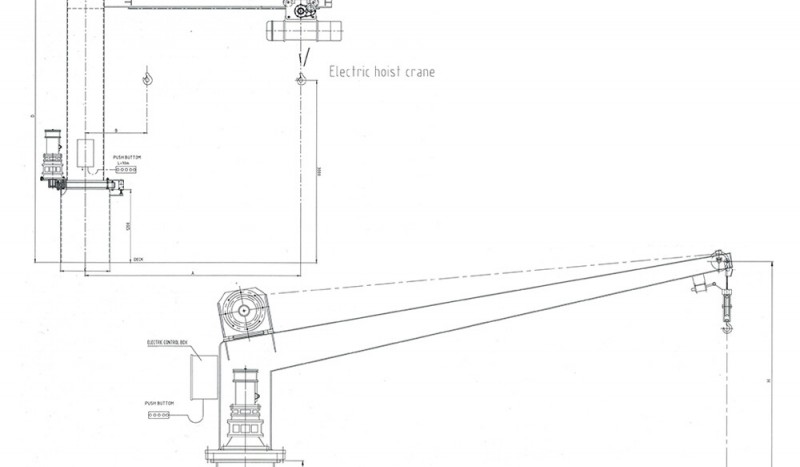

8t Electric Slewing Crane
1-8t Electric Slewing Crane
The electric slewing crane is special equipment used on marine for lifting spare parts and sundries.Design and manufacture of products comply in full compliance with current and applicable rules for lifting appliance.
Technical specifications
|
S.W.L (t) |
Hoisting speed (m/min) |
Traveling speed (m/min) |
List+Trim (degree) |
Motor power (kw) |
| 1 | 0-15 | 0-1 | 5+2 | 5.5 |
| 2 | 0-15 | 0-1 | 5+2 | 7.5 |
| 3 | 0-15 | 0-1 | 5+2 | 11 |
| 4 | 0-15 | 0-1 | 5+2 | 13 |
| 5 | 0-15 | 0-1 | 5+2 | 18 |
| 6 | 0-15 | 0-1 | 5+2 | 22.5 |
| 8 | 0-15 | 0-1 | 5+2 | 25 |
| SWL | 0.5-5t | ||
| MAX.Slewing Radius | 3.5m | ||
| MIN. Slewing Radius | 1.0m | ||
| Lift Height | 6-12m | ||
| Hoisting Speed | 8m/min | ||
| Transvers Traveling Speed | 6m/min | ||
| Slewing Speed | 0.5-0.8r/min | ||
| MAX.List /Trim at MAX. Capacity | 5/2 DEG | ||
Note: We can design according to customer requirements.
