20T Hydraulic Cargo Crane

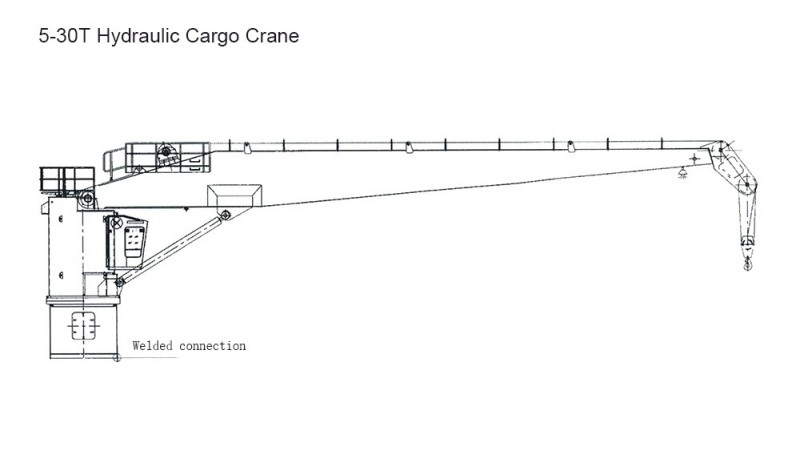

5-30T Hydraulic Cargo Crane
Hydraulic cargo cranes are equipments for loading and unloading cargoes for various types of ships, such as ocean, coastal and inland rivers at home and abroad. It has the characteristics of beautiful appearance, reasonable structure, large lifting capacity and good maneuverability.
It can be recognized by all classification societies, meets the specifications of various classification societies, meets international and domestic standards, and complies with the relevant provisions in the "Code for Lifting Equipment for Ships and Offshore Installations".
Technical Specification
| Working Load (t) | Working Radius (m) | Liffing Speed (m/min) | Luffing Time (s) | Slewing Speed (r/min) | Motor Power (KW) |
| 5 | 18 | 20 | 60 | 1 | 75 |
| 24 | 20 | 80 | 1 | 75 | |
| 10 | 16 | 20 | 60 | 1 | 125 |
| 20 | 20 | 80 | 1 | 125 | |
| 24 | 20 | 90 | 1 | 125 | |
| 28 | 20 | 100 | 1 | 125 | |
| 15 | 16 | 20 | 60 | 1 | 150 |
| 20 | 20 | 80 | 1 | 150 | |
| 24 | 20 | 90 | 1 | 150 | |
| 28 | 20 | 90 | 1 | 150 | |
| 20 | 16 | 20 | 80 | 1 | 150 |
| 20 | 20 | 90 | 1 | 184 | |
| 24 | 20 | 90 | 1 | 184 | |
| 28 | 20 | 90 | 1 | 184 | |
| 25 | 20 | 20 | 80 | 1 | 184 |
| 24 | 20 | 90 | 1 | 184 | |
| 26 | 20 | 90 | 1 | 184 | |
| 28 | 20 | 100 | 1 | 184 | |
| 30 | 24 | 20 | 90 | 1 | 184 |
| 26 | 20 | 100 | 1 | 184 | |
| 28 | 20 | 110 | 1 | 184 |
Note:Design according to client request.
