Engine room crane
China Engine room crane:

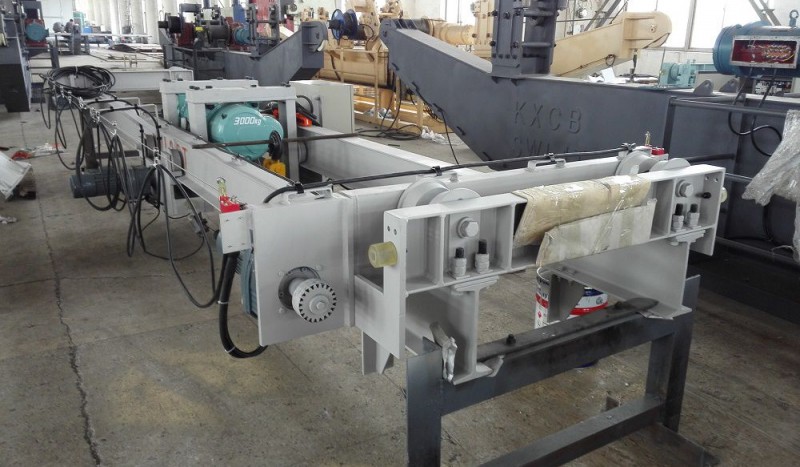

Engine room crane
The engine room crane is ship maintenance equipment and lifting the spare parts of specifical equipment.
Traveling beam have single beam and double beam two kinds, power supply has manual, electric, pneumatic for the user choice.
Design and manufacture of products comply in full compliance with current and applicable rules for lifting appliance.
All class certificate are available.
Technical parameter:
| Type | SWL | Hoisting speed | Traveling speed | List+Trim | Motor power |
| T | m/min | m/min | Degree | kw | |
| EC05 | 0.5 | 0.8/8 | 6--12 | 5+2 | 0.2/0.8 |
| EC10 | 1.5 | 0.8/8 | 6--12 | 5+2 | 0.2/1.5 |
| EC20 | 2 | 0.8/8 | 6--12 | 5+2 | 0.4/3 |
| EC30 | 3 | 0.8/8 | 6--12 | 5+2 | 0.8/4.5 |
| EC40 | 4 | 0.8/8 | 6--12 | 5+2 | 0.8/7.5 |
| EC50 | 5 | 0.8/8 | 6--12 | 5+2 | 0.8/7.5 |
| EC80 | 8 | 0.8/8 | 6--12 | 5+2 | 1.5/13 |
| EC100 | 10 | 0.8/8 | 6--12 | 5+2 | 1.5/15 |
| EC125 | 12.5 | 0.8/8 | 6--12 | 5+2 | 2.2/22.5 |
