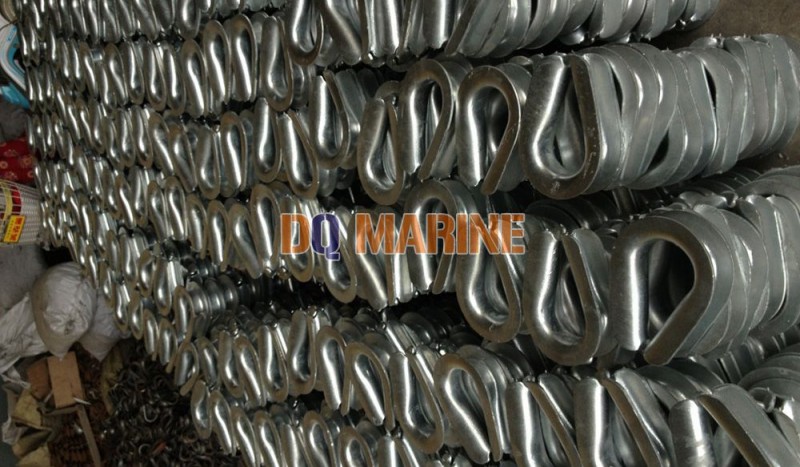

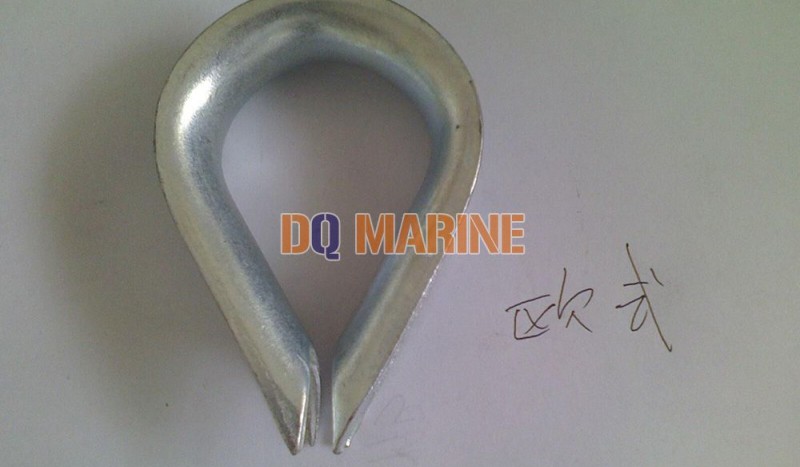

European Type Wire Rope Thimbles
Description
This product adopts European standard, it is constructed by sheet metal forming technology, and the material is Q235 steel, Surface can be electro galvanized or hot galvanized or dacromet or environmental protection galvanized. The size is from 4mm to 32mm. It is widely used to lifting and crane industry.
Product Details
European Type Wire Rope Thimbles sizes table
| Size(mm) | Dimensions(mm) | Weight 100 pcs (Ibs) | ||||
| A | B | C | D | E | ||
| 4 | 25 | 20 | 11 | 7 | 4 | 2.21 |
| 5 | 31 | 24 | 15 | 8 | 5 | 2.65 |
| 6 | 37 | 29 | 18 | 10 | 6 | 3.75 |
| 7 | 44 | 34 | 22 | 11 | 7 | 5.74 |
| 8 | 51 | 38 | 24 | 12 | 8 | 6.84 |
| 10 | 64 | 46 | 30 | 14 | 10 | 15 |
| 12 | 76 | 57 | 38 | 18 | 12 | 20.52 |
| 14 | 82 | 60 | 40 | 20 | 14 | 26.48 |
| 16 | 89 | 64 | 42 | 22 | 16 | 30.67 |
| 18 | 102 | 69 | 45 | 26 | 18 | 48.54 |
| 20 | 115 | 79 | 51 | 28 | 20 | 64.21 |
| 22 | 127 | 89 | 54 | 30 | 22 | 88.04 |
| 24 | 140 | 102 | 64 | 34 | 26 | 106.8 |
| 26 | 152 | 105 | 64 | 34 | 28 | 146.07 |
| 28 | 165 | 115 | 73 | 38 | 30 | 173.4 |
| 30 | 178 | 121 | 79 | 44 | 32 | 222.86 |
| 32 | 203 | 133 | 93 | 46 | 34 | 274.71 |
