DIN 6899A Wire Rope Thimbles
Description

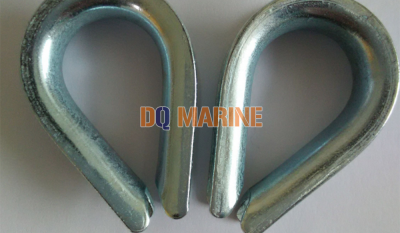

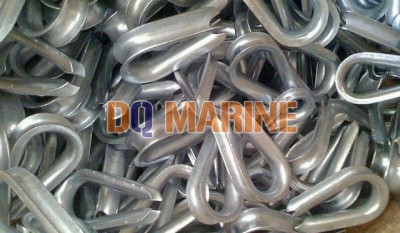

This product adopts German standard, it is constructed by sheet metal forming technology, and the material is Q235 steel, Surface can be electro galvanized or hot galvanized or sprayed plastics. The size is from 2.5mm to 28mm and the pull is from 0.5T to 20T. It is widely used to wire rope fitting.
Product Details
DIN 6899A Wire Rope Thimbles sizes table
| Size (mm) | Dimensions(mm) | Weight 100 pcs (Ibs) | ||||||
| A | B | C | D | E | F | H | ||
| 2.5 | 28 | 21.5 | 16 | 10 | 5 | 3 | 1 | 0.31 |
| 3 | 30 | 23.5 | 17 | 11 | 5.5 | 3.5 | 1 | 0.77 |
| 4 | 34 | 26.5 | 19 | 12 | 6 | 4 | 1 | 0.93 |
| 5 | 36 | 28 | 20 | 13 | 7 | 5 | 1 | 1.77 |
| 6 | 38 | 30 | 22 | 14 | 8 | 6 | 1 | 1.88 |
| 7 | 43 | 33 | 24 | 15 | 9 | 7 | 1.2 | 2.43 |
| 8 | 46 | 35 | 26 | 16 | 10 | 8 | 1.2 | 3.75 |
| 9 | 50 | 39 | 29 | 18 | 11 | 9 | 1.2 | 4.63 |
| 10 | 56 | 43 | 32 | 20 | 13 | 10 | 1.5 | 7.72 |
| 11 | 63 | 47.5 | 36 | 22 | 14 | 11 | 1.5 | 8.16 |
| 12 | 68 | 51.5 | 40 | 24 | 15 | 12 | 1.5 | 11.58 |
| 13 | 75 | 56.5 | 44 | 26 | 17 | 13 | 2 | 16 |
| 14 | 82 | 61 | 48 | 28 | 18 | 14 | 2 | 18.38 |
| 16 | 91 | 69.5 | 54 | 32 | 21 | 16.5 | 2.5 | 27.14 |
| 18 | 102 | 78 | 59 | 35 | 24 | 18 | 3 | 40.82 |
| 20 | 114 | 86.5 | 68 | 40 | 28 | 20 | 4 | 69.51 |
| 22 | 126 | 95 | 76 | 44 | 30 | 22 | 4 | 80.54 |
| 24 | 135 | 103.5 | 84 | 48 | 32 | 24 | 4 | 92.01 |
| 28 | 162 | 120.5 | 100 | 56 | 38 | 28 | 5 | 159.09 |
