Charging and Discharging Panel
China Charging and Discharging Panel:
Support every kinds of vessel 12V,24V,220V battery group charge and discharge to ues.Also have the function of distributing,monitoring and protecting.
Specification:
| S.N | type | power | charging pattern | rating current | battery bank | charge and discharge combination form | emergency load bypass | emer.load bypass | |||
| voltage | charge and discharge | emergency | others | with switch | breaker | ||||||
| 1 | CPJ-20/10 | AC220V | Silicon rectify | 20 | 24 | 1 | 4 | 4 | |||
| 2 | CPJ-20/30 | AC220V | Silicon rectify | 20 | 24 | 1 | concurrently | 4 | 2 | 4 | |
| 3 | CPJ-20/20 | AC220V | Silicon rectify | 20 | 24 | 1 | 1 | 4 | 4 | 8 | |
| 4 | CPJ-20/01 | AC220V | Silicon rectify | 20 | 12 | charge only | |||||
| 5 | CPJ-25/10 | AC220V | Silicon rectify | 25 | 24 | 1 | 4 | 4 | |||
| 6 | CPJ-40/11 | AC220V | Silicon rectify | 40 | 24 | charge only | 4 | 4 | |||
| 7 | CPJ-40/40 | AC220V | Silicon rectify | 40 | 24 | 1 | 1 | 4 | 4 | ||
| 8 | CPJ-60/40 | AC380V | Silicon rectify | 60 | 24 | 1 | 1 | 5 | 5 | 8 | |
| 9 | CPJ-20/20 | AC380V | Silicon rectify | 20 | 220 | 1 | 10 | ||||
| 10 | CPJ-20/02 | AC380V | constant voltage and current | 20 | 220 | float charge | 6 | 10 | |||
| 11 | CPJ-20/10 | 24/36 | DC charger | 20 | 24 | 1 | 6 | 2 | |||
| 12 | CPJ-40/11 | 24/36 | DC charger | 40 | 24 | charge only | 4 | 2 | |||
| 13 | CPJ-20/03 |
220 24/36 |
DC charger | 20 | 220 | rise voltage | 4 | 2 | |||

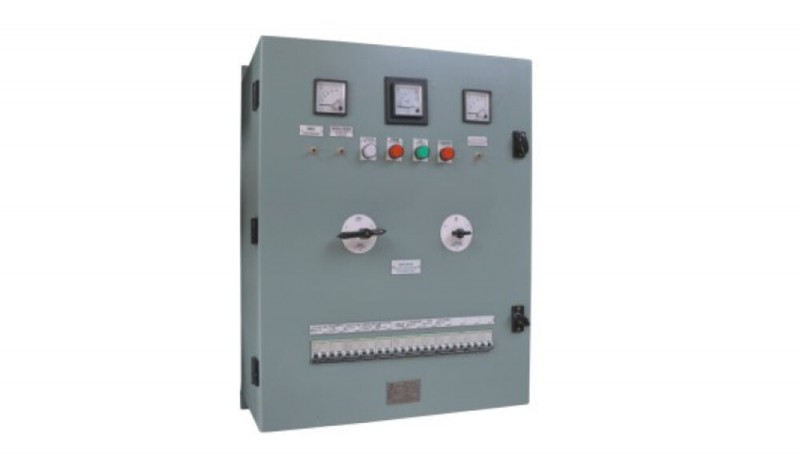

Picture:
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
