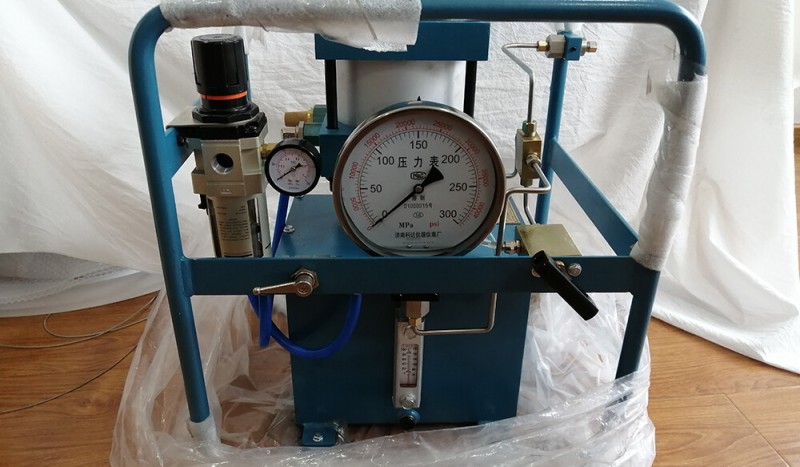

FYK3000 Pneumatic Hydraulic Pump
FYK3000 Pneumatic Hydraulic Pump:
FYK-3000 Pneumatic Hydraulic Pump use compressed air as power to drive the plunger of hydraulic pump to form pressure oil, and the high oil pressure is generated by the ratio between the
piston and the piston area of the oil pump. It has a compact structure and light weight. It is an ideal powersource for hydraulic system. In recent years, it has been widely used in all kinds of industrial and miningand installation enterprises.
| Model | FYK3000 |
| Shape Size | 470*400*530mm |
| Tank Volume | 12L |
| Weight | 40kgs(Oil free) |
| Output pressure | Max 280MPa (When the input air pressure is 0.8 MPa) |
| Maximum flow rate | 0.512l/min (When the output oil pressure is zero) |
