DB-65LPG Side Chanel Multistage Pump
Category:
Other Pump
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
DB-65LPG Side Chanel Multistage Pump:
China DB-65LPG Side Chanel Multistage Pump:
The DB-65 multistage pump,centrifugal and side channel,is designed with 6stages,having a horizontal configuration,shaft sealing by mechanical seal without cooling,for handlingLPG(liquid gas),the liquids involving high-differential pressure,lowNPSH conditions and aerated liquids up to 50% gas,such as pumping LPG from underground tanks.
LPG cylinder filling
Pumping filling operations

loading/underloading of LPG trucks and transportt trailers Vaporizer feed pumps.

Specification:

Model Motor DB-65 Without Motor
Direction of Rotation anti-clockwise facing the end of the pump drive shaft
Max.Operating Pressure 40 Bars at 120℃
Speed 1450RPM
Power 380V,50Hz,4KW/220V 50Hz 4KW
Ambient Temperature 20℃~+60℃
Number of Stage 6 stages
Connecting Flanges DIN 2501,PN 40 as per DIN2501,PN40
Bearings seleeve bearing at the pumpend,ball bearing at thedrive end
Lubrication plain bearing at the pump end lubricated by the pumped product,ball bearing at the drive end lubricated for life.
Dimension 112*42*57cm 100*48*45cm
Net Weight 136kg 64kg
Gross Weight 148kg 78kg
Package 1pc/Wood Case

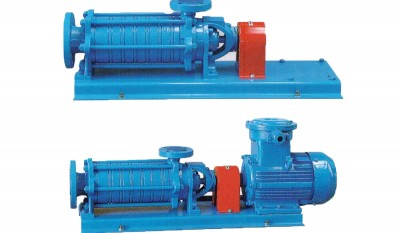

Picture:
