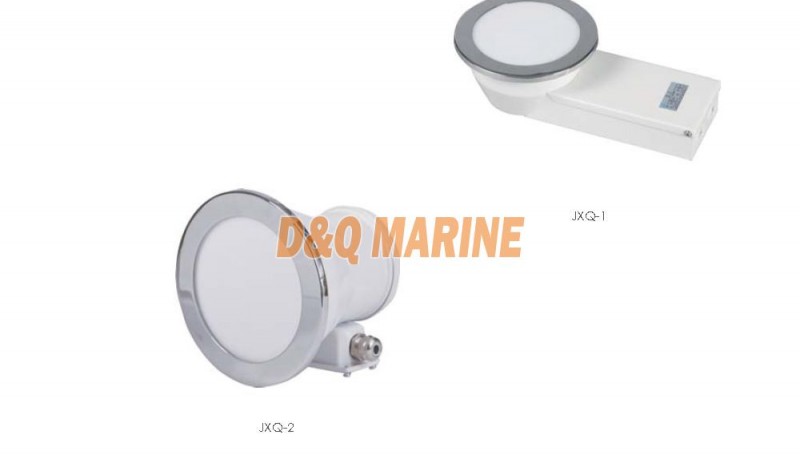

JXQ Barrel Light
The scope of application
The products are designed for illumination on the bottom or the wall of large shipyard, they are also fitted with deep dive apparatus as underwater illumination when work.
Products feature
1. The body of light is made of good quality stainless steel material by welding fabrication.
2.The cable outside diameter is Φ10～Φ12 mm.
3. GC217 matched electrical box with safety-performance, and it can work for a long time in higher temperature condition.
Adopt standard
1. Conform to STANDARD of GB7000.201.
2. Conform to STANDARD of GB7000.1.
3. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.
Installation
JXQ Barrel Light Specification
| Type | JXQ-1 | JXQ-2 |
| Voltage(V) | 220V | |
| Light source | Eenergy-saving Lamp | |
| Power(W) | 13 | |
| Lamp Holder | E24 | E27 |
| Protection Class | IP20 | |
| Weight(kg) | 0.9 | 1.1 |
