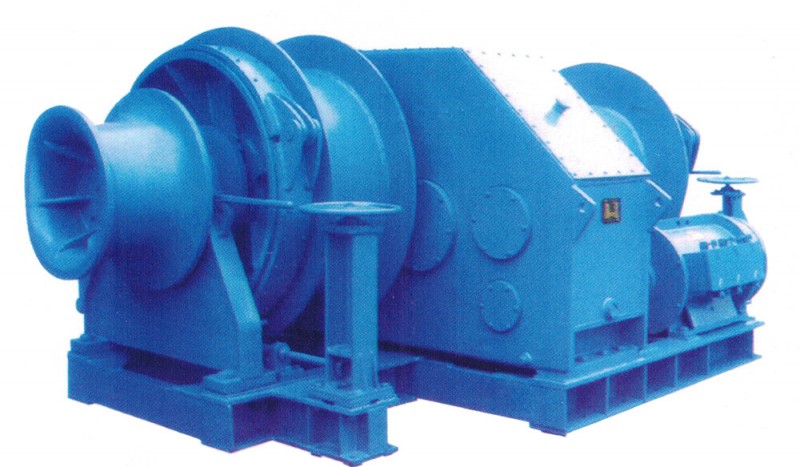

40T Electric Double Drum Mooring Winch
3-40T Electric Double Drum Mooring Winch
Electric mooring winch is widely used in places where work is heavy and where traction is required. The motor of the single-roller electric winch drives the reel through the reducer, and a brake is arranged between the motor and the input shaft of the reducer. In order to meet the needs of lifting, traction and turning, there are also winches for double reels and multi-reel devices.
Drawing
Technical specifications
|
Drum
Load (Kn) |
Nominal Speed (m/min) |
Holding Load （Kn) |
Dia. of Rope (mm) |
Capacity of Rope （m) |
| 30 | 15 | 90 | 16 | 150 |
| 40 | 15 | 120 | 18 | 150 |
| 50 | 15 | 150 | 20 | 150 |
| 75 | 15 | 220 | 26 | 150 |
| 80 | 15 | 240 | 26 | 150 |
| 100 | 15 | 300 | 28 | 150 |
| 125 | 15 | 310 | 30 | 150 |
| 150 | 15 | 375 | 32 | 150 |
| 160 | 15 | 400 | 32 | 150 |
| 200 | 9.6 | 500 | 40 | 150 |
| 250 | 9.6 | 625 | 44 | 150 |
| 315 | 7.8 | 788 | 52 | 150 |
| 350 | 7.8 | 875 | 54 | 150 |
| 400 | 7.8 | 1000 | 56 | 150 |
