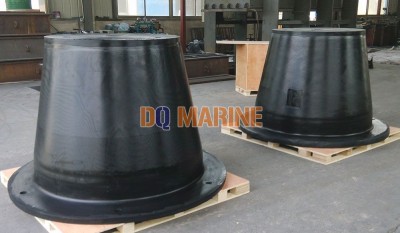

Cone Type Rubber Fenders
Category:
Marine Fender
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Cone Type Rubber Fenders:
Cone Type Rubber Fenders

1. More reasonable structure, 70%~72.5% deflection, double energy absorption than the same size fenders, long service life with low cost of the dock projects.

2. The performance is almost changeless during vessel’s angular berthing under 10°.

3. Frontal panel can reduce the surface pressure to the ship, surface pressure can be controlled under 200KN/m2, and it is suited to berthing large ship.

4. UHMW-PE pad is fixed with frontal panel to reduce the reaction factor between ship and fender system, this can extend service life of fender system through reducing the shear force.

5. Flexible and convenient installation.

Specification:

Specification H(mm) B(mm) C(mm) D(mm) E(mm) F
#x(mm)
G(mm)
#x(mm)
Weight(kg)
CONE600H 600 900 810 510 390 6xM24 6x30 235
CONE700H 700 1050 945 595 455 6xM30 6x38 350
CONE800H 800 1200 1080 680 520 6xM36 6x44 540
CONE900H 900 1350 1215 765 585 6xM36 6x44 765
CONE1000H 1000 1500 1350 850 650 6xM42 6x50 1050
CONE1100H 1100 1650 1485 935 715 6xM42 6x50 1400
CONE1150H 1150 1725 1550 998 750 6xM42 6x50 1600
CONE1200H 1200 1800 1620 1020 780 8xM42 6x50 1950
CONE1300H 1300 1950 1755 1105 845 8xM48 8x56 2400
CONE1400H 1400 2100 1890 1190 930 8xM48 8x60 3060
CONE1600H 1600 2400 2158 1360 1040 8xM48 8x60 4600
CONE1800H 1800 2700 2428 158 1170 10xM56 10x74 6600
