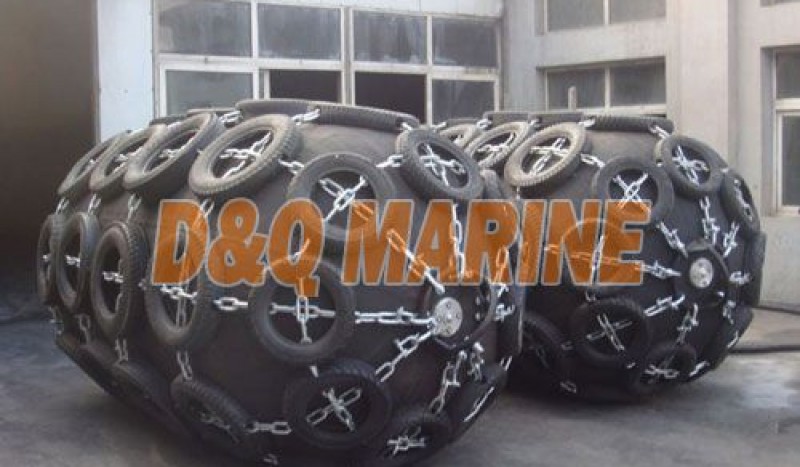

Marine Yokohama Fender
China Marine Yokohama Fender:
Description:
Marine yokohama fender, can be named as dependable ball,marine pneumatic rubber fender, marine inflatable rubber fender etc.
Except inflatable fender, we still have solid rubber fender,yacht fender,D type fender,M type fender,dock fender etc.
Yokohama fender initial pressure:0.05MPa and 0.08MPa both are available.
Sizes can be customized.
Can get approval of ABS,BV,CCS etc.
Size Chart:
| No. | Size | Initial pressure | Energy absorption | Reaction force |
| (Diameter x Length) | ||||
| mm x mm | MPa | KJ | KN | |
| 1 | 500 x 1000 | 0.05 | 6 | 64 |
| 2 | 600 x 1000 | 0.05 | 8 | 74 |
| 3 | 700 x 1500 | 0.05 | 17 | 137 |
| 4 | 1000 x 1500 | 0.05 | 32 | 182 |
| 5 | 1000 x 2000 | 0.05 | 45 | 257 |
| 6 | 1200 x 2000 | 0.05 | 63 | 297 |
| 7 | 1350 x 2500 | 0.05 | 102 | 427 |
| 8 | 1500 x 3000 | 0.05 | 153 | 579 |
| 9 | 1700 x 3000 | 0.05 | 191 | 639 |
| 10 | 2000 x 3500 | 0.05 | 308 | 875 |
| 11 | 2500 x 4000 | 0.05 | 663 | 1381 |
| 12 | 2500 x 5000 | 0.05 | 857 | 1835 |
| 13 | 2500 x 5500 | 0.05 | 943 | 2019 |
| 14 | 3000 x 5000 | 0.05 | 1050 | 2000 |
| 15 | 3000 x 6000 | 0.05 | 1312 | 2488 |
| 16 | 3300 x 4500 | 0.05 | 1175 | 1884 |
| 17 | 4500 x 9000 | 0.05 | 4752 | 5747 |
| 18 | 4500 x 12000 | 0.05 | 6473 | 7984 |
