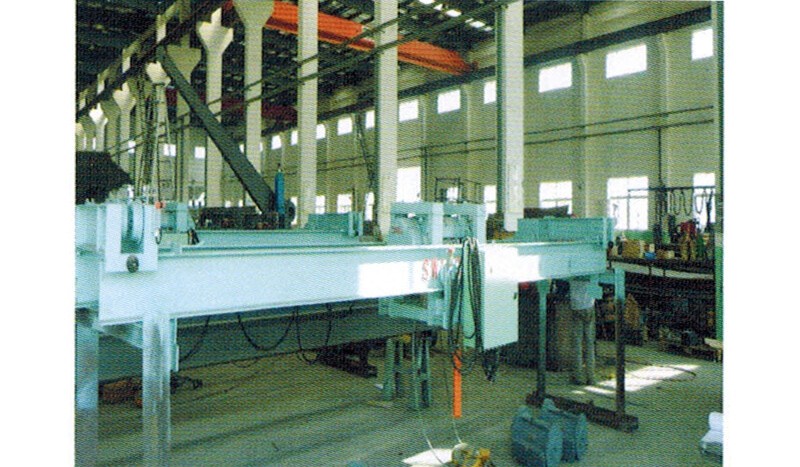

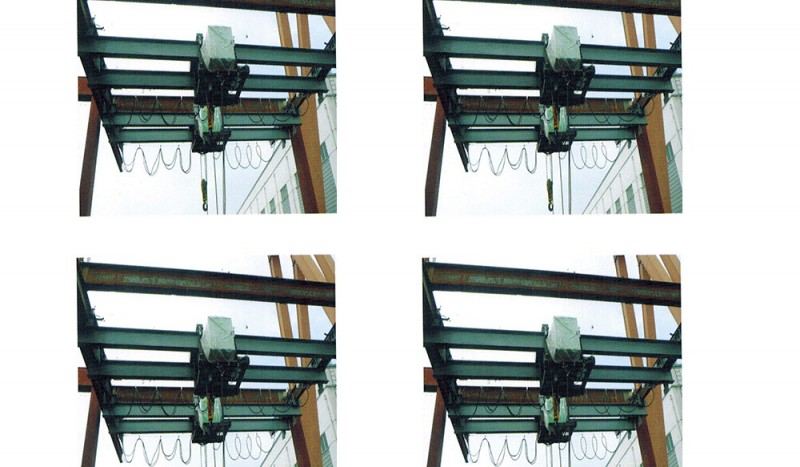

8t Electric Double Beam Engine Room Crane
2-10t Electric Double Beam Engine Room Crane
The engine room crane is ship maintenance equipment and lifting the spare parts of special equipment.Traveling beam have single beam and double beam two kinds,power supply has manual ,electric,pneumatic for the user choice.
Design and manufacture of products comply in full compliance with current and applicable rules for lifting appliance.
Drawing
Technical specifications
|
S.W.L (t) |
Main Dimensions(mm) | ||||
| A | B | C | D | E | |
| 2 | 200 | 330 | 1200 | 420 | 1310 |
| 3 | 250 | 370 | 1380 | 480 | 1340 |
| 5 | 320 | 410 | 1500 | 510 | 1400 |
| 8 | 360 | 440 | 1550 | 1000 | 1500 |
| 10 | 450 | 450 | 1550 | 1000 | 1500 |
