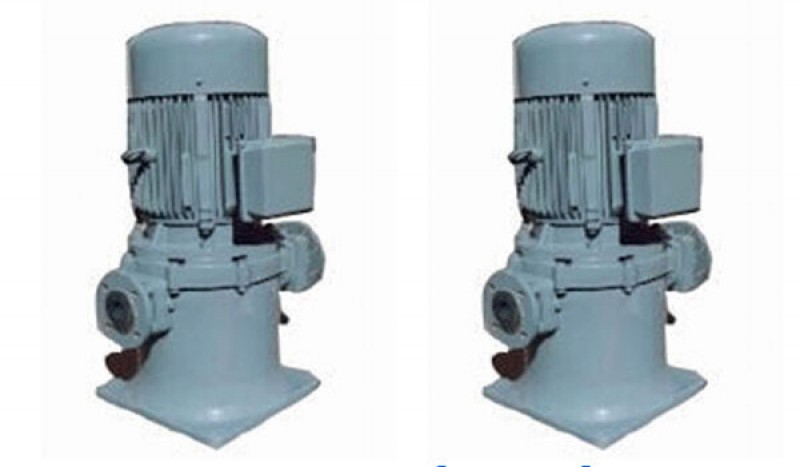

CLZ Series Vertical self-priming centrifugal pump
China CLZ Series Vertical self-priming centrifugal pump:
CLZ series Marine vertical self-priming pumps are featured by small size, good self-priming performance (no need to add self-priming device) and light weight.Easy to install, use and maintain.
The pump is used for bilge, ballast, fire pump and sea fresh water cooling and sanitary pump.This series of large size pump can be used as matching pump for anti-smuggling water cannon and fire cannon.
CLZ Series Vertical self-priming centrifugal pump
Main Technical Data
| Model |
Flow rate Q（m³/h） |
Lift m |
Rev speed r/min |
Motor power (KW) |
| 10CLZ-2 | 3 | 8 | 2950 | 0.37 |
| 50CLZ-9 | 5 | 45 | 3 | |
| 50CLZ-7 | 10 | 60 | 3.5 | |
| 50CLZ-6 | 10 | 45 | 4 | |
| 50CLZ-4 | 5 | 25 | 1.5 | |
| 50CLZ-3 | 10 | 25 | 2.2 | |
| 65CLZ-9 | 12.5 | 8 | 11 | |
| 65CLZ-6 | 12.5 | 65 | 7.5 | |
| 65CLZ-5 | 12.5 | 50 | 5.5 | |
| 65CLZ-5A | 12.5 | 32 | 3 | |
| 65CLZ-4.5 | 12.5 | 20 | 2.2 | |
| 65CLZ-3 | 20 | 25 | 4 | |
| 80CLZ-13 | 45 | 21 | 5.5 | |
| 80CLZ-11 | 50 | 25 | 7.5 | |
| 80CLZ-9 | 50 | 32 | 11 | |
| 80CLZ-9A | 60 | 25 | 11 | |
| 80CLZ-7.5 | 60 | 50 | 18.5 | |
| 80CLZ-7 | 45 | 48 | 15 | |
| 80CLZ-7A | 40 | 50 | 15 | |
| 80CLZ-6 | 50 | 50 | 15 | |
| 80CLZ-6A | 30 | 60 | 18.5 | |
| Also have bigger pumps, pls contact us for more information. | ||||
