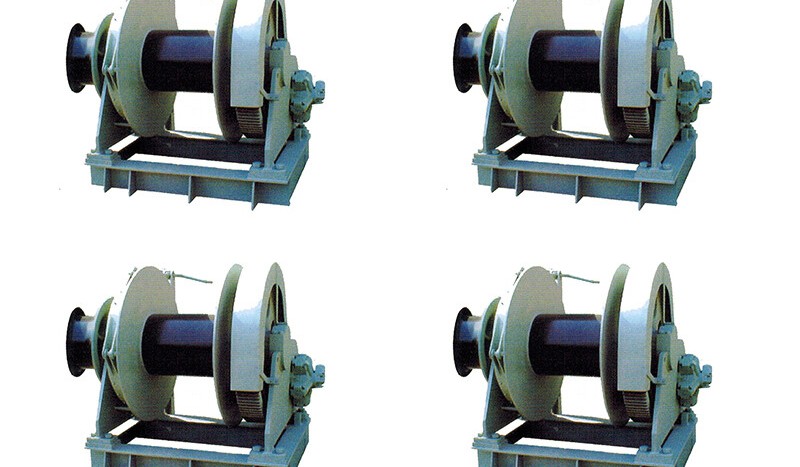

160Kn Hydraulic Single-drum Mooring Winch
30-400Kn Hydraulic Single-drum Mooring Winch
The electric or hydraulic winches are used in inland river boats and coustal ships for mooring hoisting or weigthing.
Drawing
Technical specifications
|
Drum Load (KN) |
Nominal Speed (m/min) |
Holding Speed (KN) |
Steel Cable Diameter (mm) |
Cable Capacity (m) |
| 30 | 15 | 90 | 16 | 150 |
| 40 | 15 | 120 | 18 | 150 |
| 50 | 15 | 150 | 20 | 180 |
| 75 | 15 | 225 | 26 | 180 |
| 80 | 15 | 240 | 26 | 200 |
| 100 | 15 | 300 | 28 | 200 |
| 125 | 15 | 375 | 30 | 200 |
| 150 | 15 | 450 | 32 | 250 |
| 160 | 15 | 480 | 36 | 250 |
| 200 | 9.6 | 600 | 40 | 250 |
| 250 | 9.6 | 750 | 44 | 250 |
| 315 | 7.8 | 945 | 52 | 250 |
| 350 | 7.8 | 1050 | 54 | 250 |
| 400 | 7.8 | 1200 | 56 | 250 |
