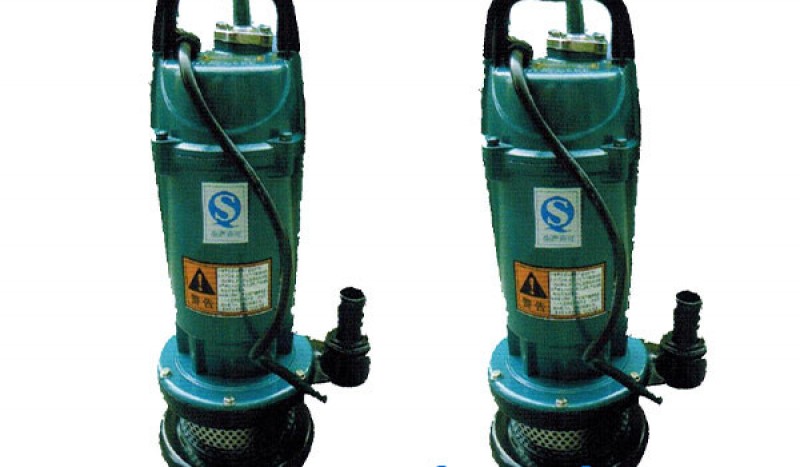

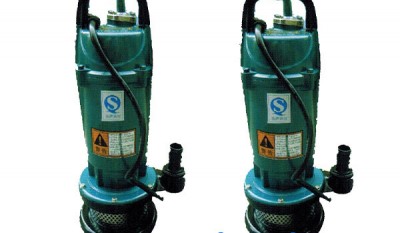

WQD Series Submerged Sewage Pump
China WQD Series Submerged Sewage Pump:
WQD submersible sewage pump is a new type of sewage pump designed and produced according to national standards on the basis of advanced submersible sewage pump technology of German ABS company.This series of pumps have the advantages of simple mechanism, strong blowdown force and high efficiency and energy saving, at the same time, they can be equipped with automatic control and automatic installation of auto-coupling device, which makes the combination of pumps better and the operation of pumps safer and more reliable.
WQD Series Submerged Sewage Pump
Main Technical Data
| Model | Capacity m³/h | Head m | Rev speed r/min | Motor power KW |
| WQD3.5-15-0.75 | 3.5 | 15 | 2850 | 0.75 |
| WQD5.5-10-0.75 | 5.5 | 10 | 2850 | 0.75 |
| WQD5.5-15-1.1 | 5.5 | 15 | 2850 | 1.1 |
| WQD7.5-15-1.1 | 7.5 | 15 | 2850 | 1.5 |
| WQD10-8-1.5 | 10 | 8 | 2850 | 1.5 |
| WQD8-20-2.2 | 8 | 20 | 2850 | 2.2 |
| WQD12-14-2.2 | 12 | 14 | 2850 | 2.2 |
| WQD16-10-2.2 | 16 | 10 | 2850 | 2.2 |
| WQD9-22-3 | 9 | 22 | 2850 | 3 |
| WQD12-15-3 | 12 | 15 | 2850 | 3 |
| WQD20-12-3 | 20 | 12 | 2850 | 3 |
| WQD10-30-4 | 10 | 30 | 2850 | 4 |
| WQD15-18-4 | 15 | 18 | 2850 | 4 |
| WQD20-15-4 | 20 | 15 | 2850 | 4 |
| WQD30-10-4 | 30 | 10 | 2850 | 4 |
| WQD15-25-5.5 | 15 | 25 | 2850 | 5.5 |
| WQD20-17-5.5 | 20 | 17 | 2850 | 5.5 |
| WQD30-15-5.5 | 30 | 15 | 2850 | 5.5 |
| WQD20-25-7.5 | 20 | 25 | 2850 | 7.5 |
| WQD100-7-5.5 | 25 | 22 | 2850 | 7.5 |
| Also have bigger pumps, pls contact us for more information. | ||||
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
