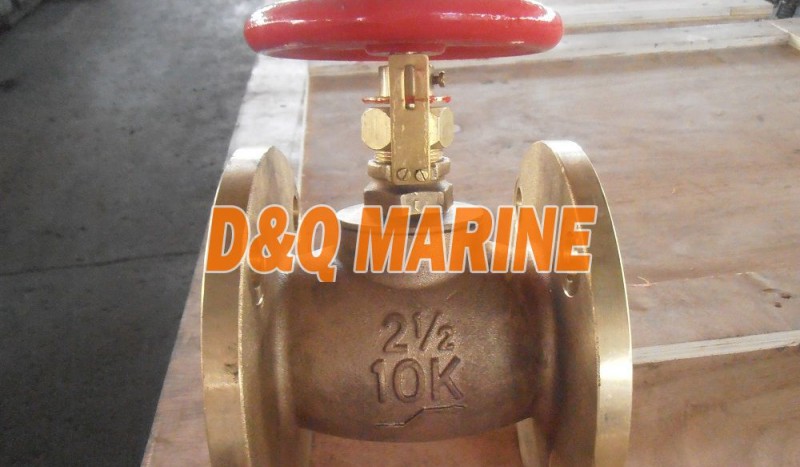

Bronze/Brass SDNR Valve JIS B2011 10K is used to replace 10K bronze/brass Screw Down Check Globe Valve. It has the same function with standard marine SDNR valve to open or close the pipe system, adjust the flow rate, prevent the backflow medium and control the flow rate in the pipe system, but the price is much cheaper.
Technical Specification:
1.Design & Manufacturing Standard: JIS B2011
2.Inspection & Test Standard: JIS F7400
3.Flange Standard: JIS B2220 FF 10K
4.Hydraulic Pressure Test: Body-2.1Mpa, Seat-1.54Mpa
5. Max Working Pressure: 1.0Mpa for air, gas, oil, pulsation water and steam of 205℃ or less, 1.4Mpa for non-shock water of 120℃ or less
6. Warranty: 12months
Main Material:
1-Body: Bronze / Brass
2-Disc: Bronze / Brass
3-Stem: Brass
4-Bonnet:Bronze / Brass
5-Handwheel: Cast Iron (HT200)
Main Data for Joining(mm):
| DN | d | L | D | C | No of Bolt | h | t | H | D2 |
| 15 | 15 | 60 | 95 | 70 | 4 | 12 | 8 | 75.5 | 50 |
| 20 | 20 | 70 | 100 | 75 | 4 | 15 | 9 | 82.5 | 65 |
| 25 | 25 | 80 | 125 | 90 | 4 | 19 | 10 | 88.5 | 65 |
| 32 | 32 | 100 | 135 | 100 | 4 | 19 | 11 | 109 | 80 |
| 40 | 40 | 100 | 140 | 105 | 4 | 19 | 12 | 121 | 80 |
| 50 | 50 | 120 | 155 | 120 | 4 | 19 | 13 | 142 | 100 |
| 65 | 65 | 140 | 175 | 140 | 4 | 19 | 13 | 154 | 125 |
