CLZ Series marine vertical self-priming pump
China CLZ Series marine vertical self-priming pump:
CLZ series marine vertical self-priming pump is a new patent product developed by our company, which has the characteristics of small size, good self-priming performance (no need to add self-priming device), light weight, easy installation, use and maintenance.
The pump is used as bilge pump, ballast pump, fire pump and sea and fresh water cooling and sanitary pump.This series of large size pump can be used as matching pump for anti-smuggling water cannon and fire cannon.

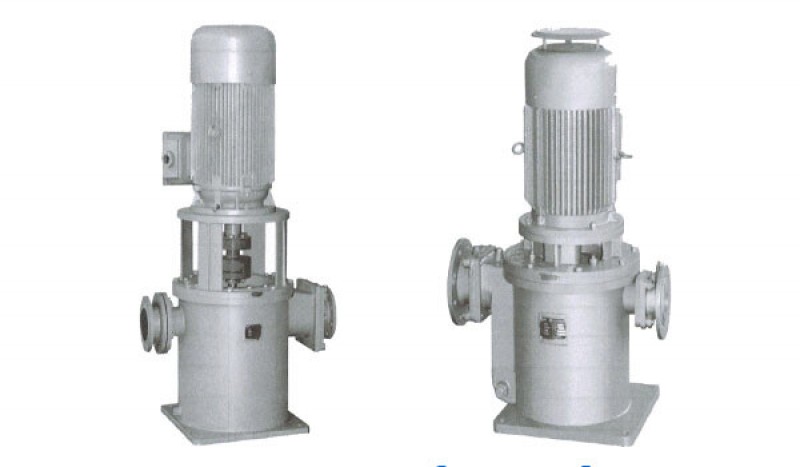

CLZ Series marine vertical self-priming pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 40CLZ-2(Z) | 5 | 60 | 2950 | 5.5 |
| 50CLZ-9(Z) | 27 | 14.5 | 3 | |
| 50CLZ-7(Z) | 12.5 | 20 | 3 | |
| 50CLZ-6(Z) | 21 | 30 | 4 | |
| 50CLZ-4(Z) | 12.5 | 32 | 3 | |
| 50CLZ-3(Z) | 12.5 | 50 | 5.5 | |
| 65CLZ-9(Z) | 25 | 20 | 3 | |
| 65CLZ-6(Z) | 25 | 32 | 5.5 | |
| 65CLZ-5.5(Z) | 30 | 35 | 7.5 | |
| 65CLZ-5(Z) | 25 | 45 | 7.5 | |
| 65CLZ-4.5(Z) | 25 | 60 | 11 | |
| 65CLZ-3(Z) | 25 | 80 | 18.5 | |
| 80CLZ-13(Z) | 45 | 21 | 5.5 | |
| 80CLZ-11(Z) | 50 | 25 | 7.5 | |
| 80CLZ-9(Z) | 50 | 32 | 11 | |
| 80CLZ-9 | 72 | 20 | 15 | |
| 80CLZ-9A | 60 | 25 | 11 | |
| 80CLZ-7(Z) | 40 | 50 | 15 | |
| 80CLZ-6(Z) | 50 | 48 | 15 | |
| 80CLZ-6A | 30 | 60 | 18.5 | |
| 80CLZ-5 | 50 | 67 | 22 |
